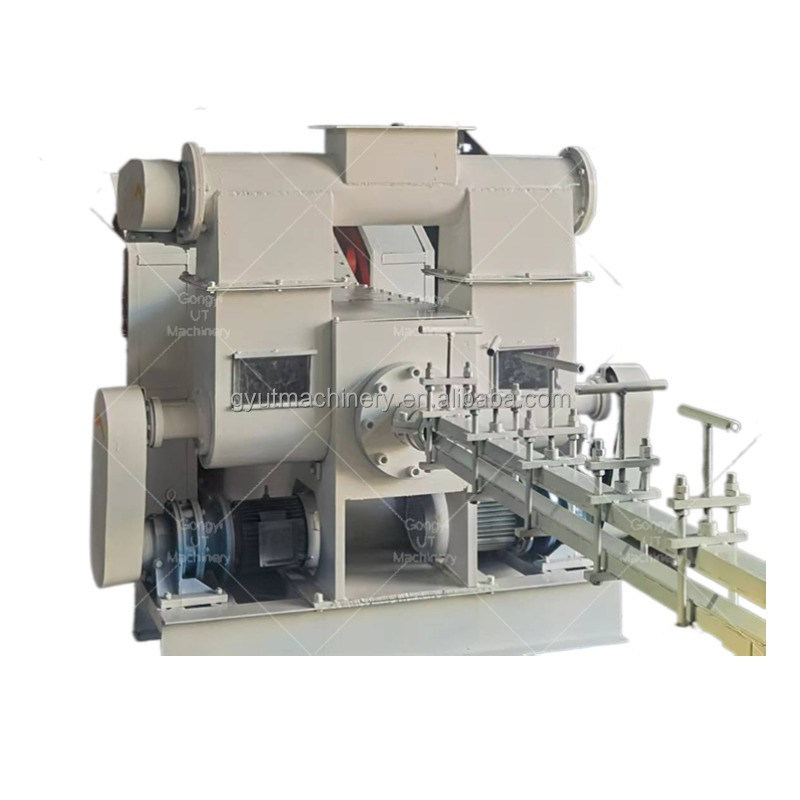

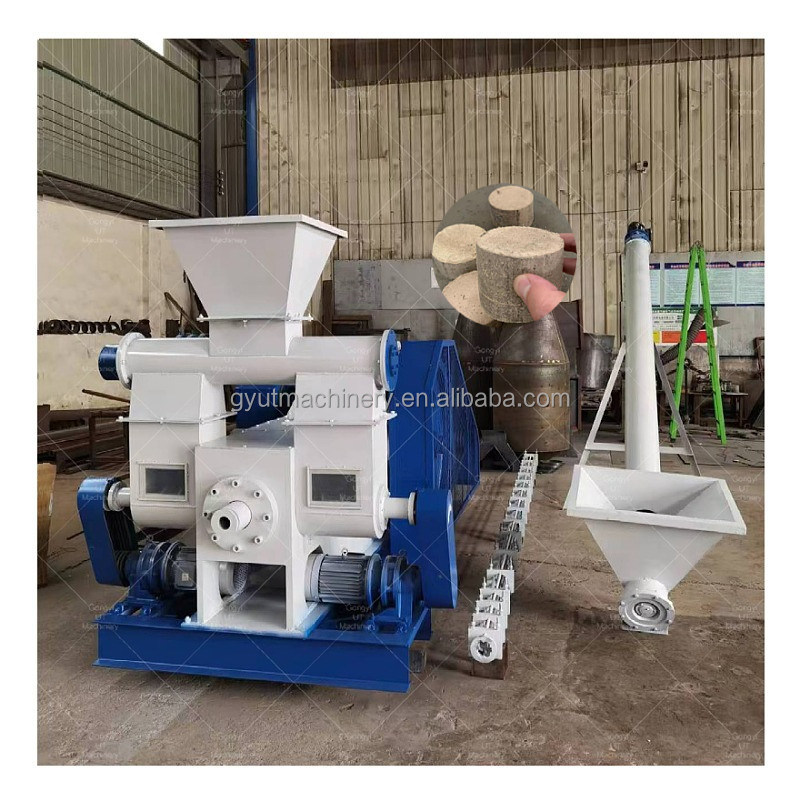

Full Automatic Sawdust Biomass Briquette Machine with Ram-Type Crank-Link Mechanism

Place of Origin:

China

Brand Name:

Request A Quote

Full Automatic Sawdust Biomass Briquette Machine with Ram-Type Crank-Link Mechanism

Product Details

Features:

Mechanical Stamping Type

Applicable Industries:

Manufacturing Plant, Farms, Energy & Mining, Other

Showroom Location:

United States, Australia

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Hot Product 2024

Warranty Of Core Components:

2 Years

Core Components:

Engine, Gearbox, Motor, Pressure Vessel

Application:

Biomass Fuel

Production Capacity:

99.9%

Voltage:

380V

Dimension(L*W*H):

3500*1800*1700mm

Weight:

8000 KG

Condition:

New

Warranty:

One Year

Product Name:

Biomass Briquette Machine

Function:

Hydraulic Piston Press

Capacity:

1.2-1.5T/H

Keyword:

Sawdust Biomass Briquette Making Machine

Briquette Density:

1-1.4g/cm3

Particle Size Of Raw Material:

Sawdust, Wood Chips,branches,crop,etc

Usage:

Make Fuel Briquettes And Charcoal

Name:

Bio Briquette Machine

Raw Material:

Sawdust

Finished Products:

Round Biomass Wood Briquettes

Motor:

220v/380v/415v/customzied

Color:

Customzied

Key Words:

Briquette Press Machine

Usage:

Wood Shavings, Wood Sawdust , Shredded Paper

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

wooden box

Biomass Briquette Press Baler for Waste Materials 6-80mm Pellets

Get Best Price

1.2 T/hr Biomass Briquette Machine for Waste Pressing

Get Best Price

Briquette Press Baler 1.2 T/hr with 6-80mm Pellets and Briquettes

Get Best Price

1.2 T/hr Hydraulic Briquette Press Baler for Waste Materials

Get Best Price

Contact Now

Product Description

High Efficiency Full Automatic Ram-Type Principle Of The Crank-Link Mechanism Wood Sawdust Biomass Briquette Machine

Product Description

Simple process for producing charcoal briquettes:

1) Step 1- Crushing: crush the raw materials into small pieces (around 5MM diameter) by wood crusher/Hammer Mill;
2) Step 2- Drying: dry the crushed materials by flash dryer to reduce the crushed material's moisture content below 18%;
3) Step 3- Briquetting: Put the dried materials into briquette machine to make solid briquettes.

Fetures of Mechanical Stamping Type Sawdust Briquetting Press Machine:

1. Multi-Function of Mechanical stamping Biomass wood sawdust Pellet and Briquette Machine, which can make pellets and briquette in different size with the same machine.
2. The working principle of this machine is designed by reciprocating punching press to form pellets or briquette by formed punch. Host movement through the eccentric wheel and the driven pulley is up to 280 times per minute for reciprocating motion. The powerful impact force is up to 300 Tons.
3. As design of inertia force, the machine works with low power consumption.
4. The main machine of rated power is 45kw.
5. The machine can work in 24 hours continuously.
6. The machine capacity of 1000KG-1500KG/Hour.
7. Finish product in size: Diameter as: 8mm, 10mm,22mm,65mm,70mm,75mm, 80mm, 85mm. Density as: 1.0-1.3g/cm3.
8. Product Calorific Value: 3700-5000Kcal
9. Easy operation and very low probability of breakdown. Low cost, high efficiency.
10. Includes machine, control panel, feeding system (screw feeder or belt conveyor)

Mechanical Stamping Type Sawdust Briquetting Press Machine:

Briquetting is a process where some type of raw material is compressed under high pressure to form a round or square briquette that can be used for heating purpose. If the raw material is wood waste or agro waste, the lignin content is liberated under this very high pressure thus binding the material into a briquette with high density.

During the compression of the material, temperatures rise sufficiently to make the raw material liberate various adhesives that will assist in keeping the particles together in the compressed shape. However, to make this process successful, the moisture content of the raw material must be in the range 12 - 18 %.

The high temperature also causes the moisture in the raw material to evaporate. At a very high moisture contents, steam pockets may build up during the process thus leading to expansion which will demolish the briquette.

As the optimum moisture content for briquetting purposes varies with the raw material, we know from experience that the
recommended water content is from min. 12% to max. 18%. The ideal moisture content for most wood based material is 10-12%.

Specification

Wood Sawdust Briquette Machine
Capacity	1200-1500kg/h
Power	Main engine power:45KW
Power		Total power:61KW
Feeding Raw Materials Size	Less than or equal to 30mm
Raw Materials Moisture Content	10-20%
Final Briquette Size	70-80mm diameters
Density of Briquette	10-12g/cm3

Final Product

Recommend Products

Our Service

Pre-sale:

1. Suggest to client suitable models according to the raw material, including its type, huimidity, final charcoal capacity
requirements.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.

After-sale:

1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.

FAQ

Packing & Delivery

How to packing of our machine:

1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.

1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed
by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
