Solid Piston Stamping Briquette Machine for Making 70mm Rod Sticks Press Wood Sawdust

Place of Origin:

China

Brand Name:

Request A Quote

Solid Piston Stamping Briquette Machine for Making 70mm Rod Sticks Press Wood Sawdust

Product Details

Features:

PISTON PRESS

Applicable Industries:

Hotels, Manufacturing Plant, Farms, Home Use, Energy & Mining, Other

Showroom Location:

United Kingdom, United States, Russia, Australia

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Hot Product 2024

Warranty Of Core Components:

1 Year

Core Components:

PLC, Motor, Pressure Vessel, Pump

Application:

Press Wood Sawdust Briquette

Production Capacity:

250-300kg Per Hour

Voltage:

380v /customized

Weight:

800 KG

Condition:

New

Warranty:

1 Year

Name:

Wood Sawdust Biomass Briquette Press Machine

Raw Material:

Sawdust Rise Husk

Product Name:

Wood Biomass Briquette Making Machine

Keyword:

Sawdust Biomass Briquette Making Machine

Usage:

Biomass Briquettes Fuel Sticks

Finished Products:

Round Biomass Wood Briquettes

Function:

Sawdust RUF Block Making Machines

Briquette Shape:

Round Shap

Keywords2:

Waste Paper Board Briquette Press Machines

Final Products:

Waste Paper Board Briquette

Motor:

220v/380v/415v/customzied

Color:

Customzied

Key Words:

Briquette Press Machine

Usage:

Wood Shavings, Wood Sawdust , Shredded Paper

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

wooden box

Biomass Briquette Press Baler for Waste Materials 6-80mm Pellets

Get Best Price

1.2 T/hr Biomass Briquette Machine for Waste Pressing

Get Best Price

Briquette Press Baler 1.2 T/hr with 6-80mm Pellets and Briquettes

Get Best Price

1.2 T/hr Hydraulic Briquette Press Baler for Waste Materials

Get Best Price

Contact Now

Product Description

Product Overview

High Efficiency Solid Piston Stamping Briquette Straw Biomass Fuel Briquette Machine For Making 70mm Rod Sticks

The biomass briquette plant is an eco friendly technology to convert diverse residues like forestry, industrial and agriculture waste into solid blocks of bio-fuel. Cylindrical shaped briquettes are made with high mechanical pressure using binder less technology. Hence no need for any binder or chemical.

Product Specifications

Briquette press machine is a pressing and forming machine for compressing forest residual into solid fuel briquette. Normally, there are 3 kinds of briquette machine in the market: Screw type briquette press machine, piston briquette press machine and hydraulic briquette press machine. Hydraulic briquette machine is equipped with hydraulic system which makes it different from ommon briquette machine.Due to the hydraulic device,the pressure for compressing raw materials can keep constant. In addition,when bigger or harder materials enter into rollers, the hydraulic system will work to project the roller and ensure higher efficiency

Model	UT-100
Capacity	100-150kg/h
Final product diameter	60mm
Power	7.5kw +2.5KW
Dimension	120015001320mm
Weight	700kg

Production Process

The whole charcoal production line mainly includes four needed machines: crusher, dryer, briquette making machine.

Raw Material → Crusher → Dryer → Briquette machine

1.Crusher

Crusher is to reduce the size of raw materials at 3-5mm, which is suitable for making the briquette. This crusher can crush: small tree branch, cotton stalks, tree bark, coconut shell, rice straw wheat straw, corn straw, grass river reeds, palm husk, soybean stalk or husk, coffee husk, paddy straw, sunflowers stalk, bamboo and many other agrowastes etc. And the whole production line can help you make the materials into the excellent wood fibers, flour and sawdust directly, save energy and high efficiency. So the invested cost of the charcoal making can be zero.

2.Dryer

Air current type dryer is to control the moisture content of raw materials at 8-12%, suitable for making briquette. Too dry or too wet will make the briquette loose, can’t have high density. It is professionally designed for drying different kinds of wood sawdust.
The whole system consists of fan blower, motor engine, fuel boiler, steel pipe, cyclone and air lock. In this sawdust dryer
machine system, wet material is input into hopper by screw feeder. Fuel furnace produces large volume of hot air. The hot air is driven into steel pipes, mixed with wet sawdust and moved through curving pipes and drying chamber by the power of fan blower. Fast moving hot air sustains and is mixed with raw material sent by spiral feeder in the suspending state through the steel pipe; moisture evaporates as the material traverses along the steel pipe and is rendered dry at the discharge end. Humid air is continuously exhausted, thus the material is dried.

3. Briquette making machine:
Briquetting is a process during which raw materials are compressed under high pressure and high temperature. After the processing of drying and pressing, the briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood.

Raw material

small tree branch, cotton stalks, tree bark, coconut shell, rice straw wheat straw, corn straw, grass river reeds, palm husk,
soybean stalk or husk, coffee husk, paddy straw, sunflowers stalk, bamboo and many other agrowastes etc

Final product

Other model for choose

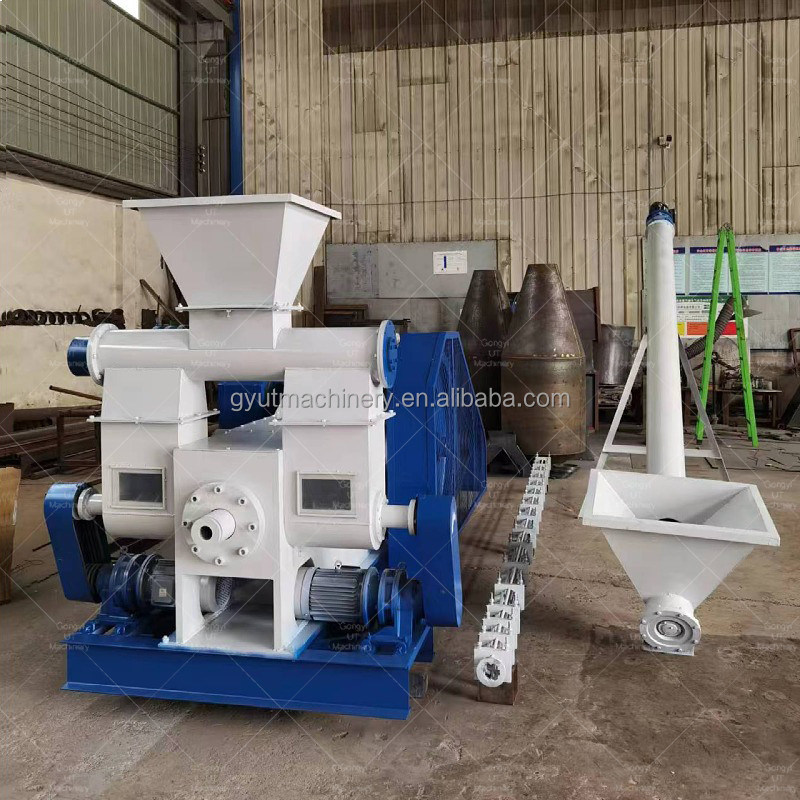

we also supply the big capacity sawdust briquette machine this is our machine pictures, kindly check it.

Packing and shipping

Package

About Packing, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.
For multiple machines or production line, it's better to loaded in standard container 20GP, 40GP, 40HQ, unually it needs wrapped with plasitc firstly, then loaded in container.

We can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.

Our Service

Pre-sale:
1. Suggest to client suitable models of as customer need.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
