Industrial Automatic Hydraulic Press Machien Wood Pallet Making Machine Wooden Pallet Block Extruding Machine

Place of Origin:

China

Brand Name:

Certification:

ISO

Model Number:

800

Request A Quote

Industrial Automatic Hydraulic Press Machien Wood Pallet Making Machine Wooden Pallet Block Extruding Machine

Product Details

Condition:

New

Machine Type:

Pneumatic Cut Off Saw

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Hydraulic Press Machine

Warranty Of Core Components:

1 Year

Core Components:

Motor, Pressure Vessel

Warranty:

1 Year

Weight (KG):

1700 KG

Power (kW):

Key Selling Points:

High Productivity

Showroom Location:

United Kingdom, United States, Spain, South Korea, Romania

Applicable Industries:

Manufacturing Plant, Farms, Energy & Mining, Other

Name:

Wood Sawdust Block Making Machine

Product Name:

Automatic Wood Pallet Block Making Machine

Usage:

Making Wood Sawdust Block Pallet

Function:

Hydraulic Wood Pallet Hydraulic Press

Keywords:

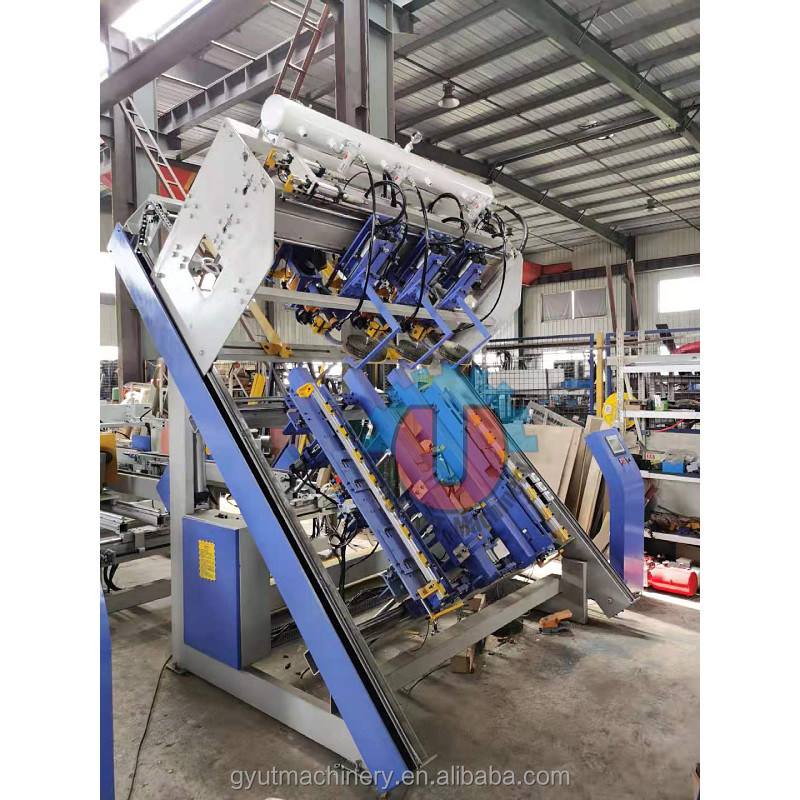

Wooden Pallet Nailing Stacking Machine

Raw Material:

Wood Sawdust Wood Shaving

Key Words:

Industrial Automatic Wood Pallet Making Machine

Key Word:

European Wood Pallet Machine

Working Principle:

Hot Extrude

Final Product:

Wooden Pallet Block

Port:

Qingdao Port, Tianjin Port, Shanghai Port ,guangzhou

Motor:

220v/380v/415v/customzied

Color:

Customzied

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

wooden box

Supply Ability

50 Set/Sets per Month

Hydraulic Press Machine Moisturizing Bath Bomb Pressing Machine For Relaxation Treatment

Get Best Price

1200 KG Weight Hydraulic Press for UT Compressed Wood Sawdust Block Making Machine

Get Best Price

Full Automatic Multicolor Hole Hydraulic Bath Bomb Salt Ball Press Machine

Get Best Price

Hydraulic Press Bath Salt Ball Forming Machine For Multi Micro Elite Customized Bath Bombs

Get Best Price

Contact Now

Product Description

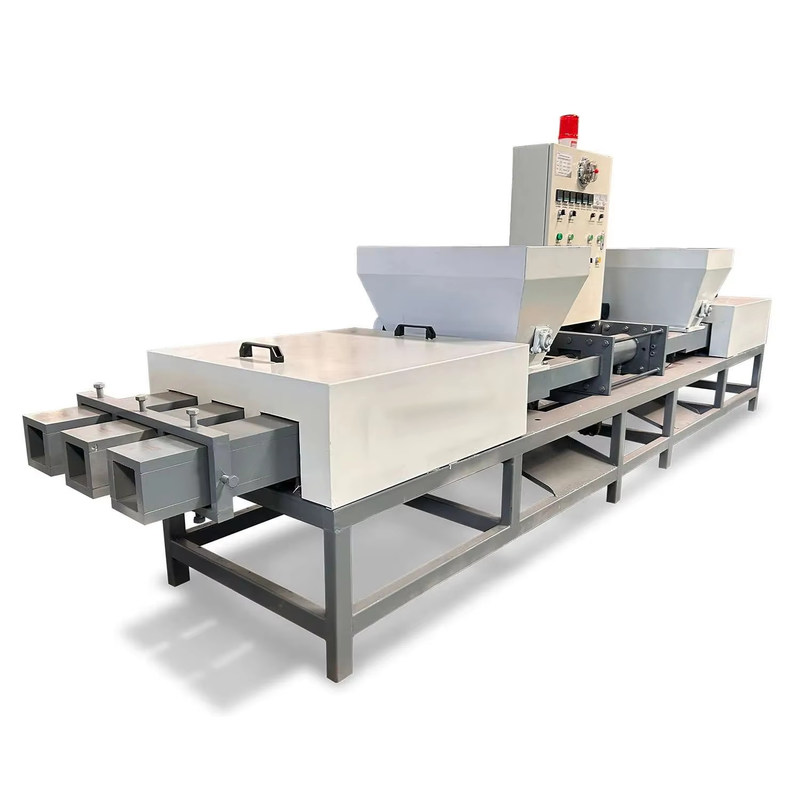

Industrial Automatic Hydraulic Press Machien Wood Pallet Making Machine Wooden Pallet Block Extruding Machine

Product Introduction of the Hydraulic Press Machien Wood Pallet Making Machine

* This high quality hot press machine is used to make the pallet feet .
* The raw materials can be wood shavings, sawdust and the like .
* The pallet block manufactured has smooth surface and is waterproof, and durable for use.
* The products are widely used for the pallet foot.

Specification of the Hydraulic Press Machien Wood Pallet Making Machine

Model	Double heads	Single head
Specification of blocks	Height:75-145mm Width:75-145mm
Power	20.3kw	13kw
Glue water amount used	200-240kg/m3	100-120kg/m3
Supports the density	550-600kg/m3
Capacity	4m3/24h	2m3/24h
Warm prosecution type	PID adjusts the merit accent to press the control
Voltage	380v/50hz
Weight	1500kg	1000kg
Dimension	50007001300mm	50006001300mm

The production line of the Hydraulic Press Machien Wood Pallet Making Machine :

Equipment disposition: Generally four hot presses are a production line, must provide the dryer, the glue mixer machine and air flow dryer each.

Detail of the Hydraulic Press Machien Wood Pallet Making Machine

Crusher:

If the material log is bigger than 5*5mm,smaller than 200mm,there is necessary to crush the material into 5*5mm for the further processing.

Dryer machine:

If the material's moisture is above 15%,the drying machine is needed to dry the moisture under 15% before mixing the material with
glue.The productivity can be designed as the customer's need.

Glue mixer

Use the glue mixer to mix the material with glue

Hot presss machine

Use the hot press machine to make the wood pallet block.

This machien final produst shape can be customized . Usuually the square shape and round shape very popular in the Europe market .

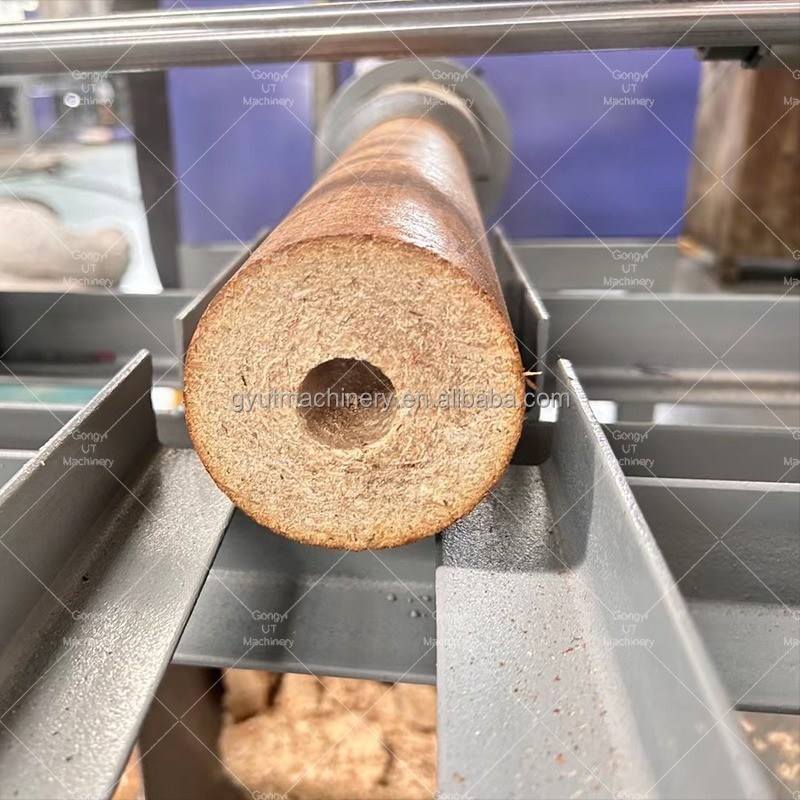

Raw material and final product of the Hydraulic Press Machien Wood Pallet Making Machine

Raw material of the Hydraulic Press Machien Wood Pallet Making Machine

The raw material size : 3-5mm, 10-12% moisture.Wood Sawdust, wood shavings, wood chips, waste wood, used pallet and so on,also the glue(Urea formaldehyde resin& UF resin).

Recommend Products of the Hydraulic Press Machien Wood Pallet Making Machine

Small Wood Sawdust Briquette Press Machine

Big capacity wood sawdust briquette press machine

1kg per bag wood sawdust baler machine

Packing & Delivery of the Hydraulic Press Machien Wood Pallet Making Machine

Package

About Packing, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.

For multiple machines or production line, it's better to loaded in standard container 20GP, 40GP, 40HQ, unually it needs wrapped with plasitc firstly, then loaded in container.

We can offer EXW, FOB and CIF terms.

EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.

GONGYI UT MACHINERY TRADE CO.,LTD is located in Gongyi City and is specialized in manufacturing mechanical equipment, wire cable machine,coal and charcoal machine,crusher and heavy machine and the wire cable making machinery. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Europe, South America, and the Middle East. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits. Welcome to viste our factory.

FAQ

1. who are we?
We are based in Henan, China, start from 2015,sell to Africa(21.50%),South America(16.10%),Northern Europe(12.00%),South Asia(11.50%),Southeast Asia(9.60%),North America(8.20%),Mid East(7.90%),Eastern Asia(4.30%),Eastern Europe(3.30%),Oceania(2.00%),Central America(2.00%),Southern Europe(1.60%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Cable Wire Making Machine,Charcoal and Coal briqeutte machine production line,Hydraulic press machine,Packing Baler BaggingMachine,Environment production Protection Machine

4. why should you buy from us not from other suppliers?
Gongyi UT Machinery Co., Ltd. produce the cable wire making machine and hydraulic press machine and so on.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in the word

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,French,Russian

Our Service

(1)Pre-sales service
a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.
(2)After-sales service
a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
