Name: Extruding Insulation Layer Copper Wire Cable Production Line Customizable Green Color
Brand: Gongyi UT Machinery Trade Co., Ltd.
SKU: UT-70
Price: 14,650.00 USD
Availability: InStock

Home > Products > Wire Cable Making Machine >

Extruding Insulation Layer Copper Wire Cable Production Line Customizable Green Color

Place of Origin:

China

Brand Name:

Model Number:

UT-70

Request A Quote

Extruding Insulation Layer Copper Wire Cable Production Line Customizable Green Color

Product Details

Use:

Extruding

Control Box:

International Standard

Usage:

Insulation

Available Material:

PVC/PE/PP/LSHF

Color:

Blue,red,green Or As Customer's Requirement

Product Name:

Wire Cable Production Line

Port:

QINGDAO PORT, NINGBO PORT, SHANGHAI PORT, TIANJIN PORT

Motor:

220v/380v/415v/customzied

Color:

Customzied

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

wooden box

Supply Ability

8 Set/Sets per Week

Innovative Cable Coiling Machine for Easy Wire Wrapping and Packing

Get Best Price

75 40 Wire Cable Electric Copper Wire Extrusion Machines for Industry Cable Production

Get Best Price

320mm Coil Outside Diameter Copper Foil Spooler Coiling Machine with 2.2kw Motor Power

Get Best Price

1250mm Wire and Cable Bobbin Laying-Up Machine for Second Hand Wood Drum Stranding

Get Best Price

Contact Now

Product Description

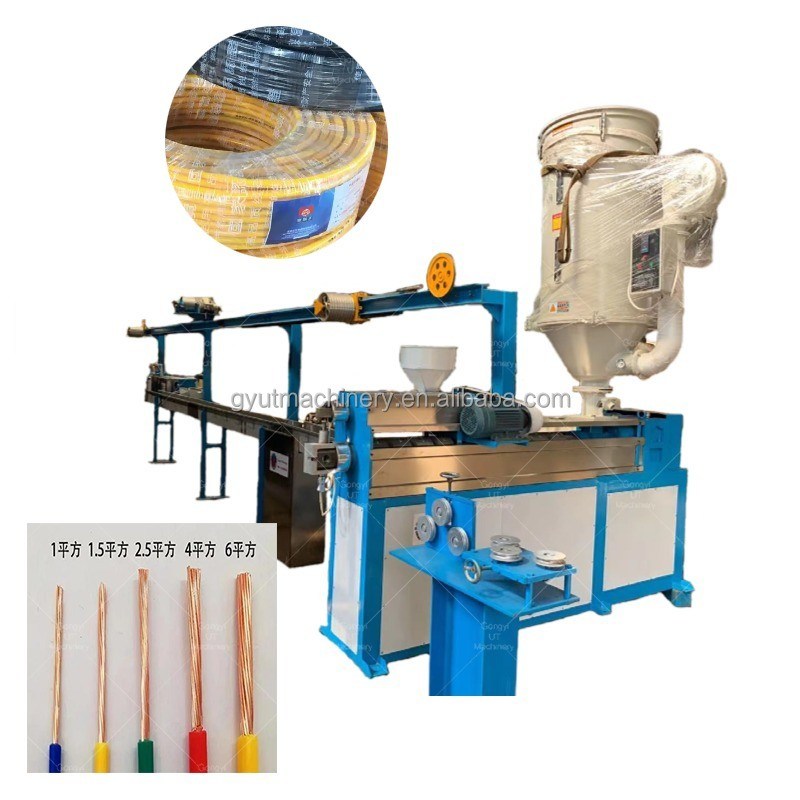

Insulation layer copper wire extrusion machine/ wire cable production line

Product Description

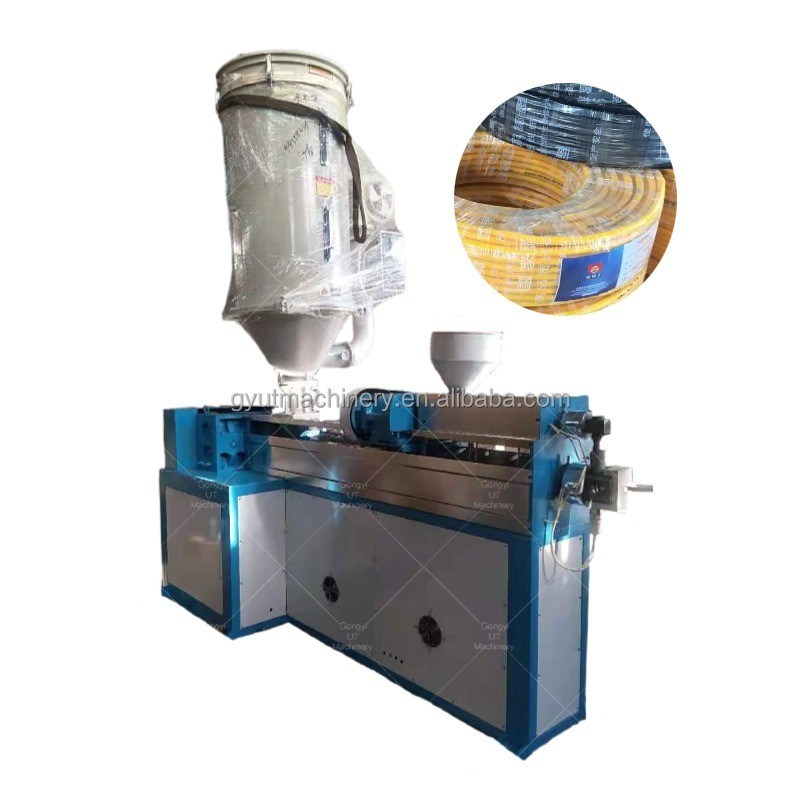

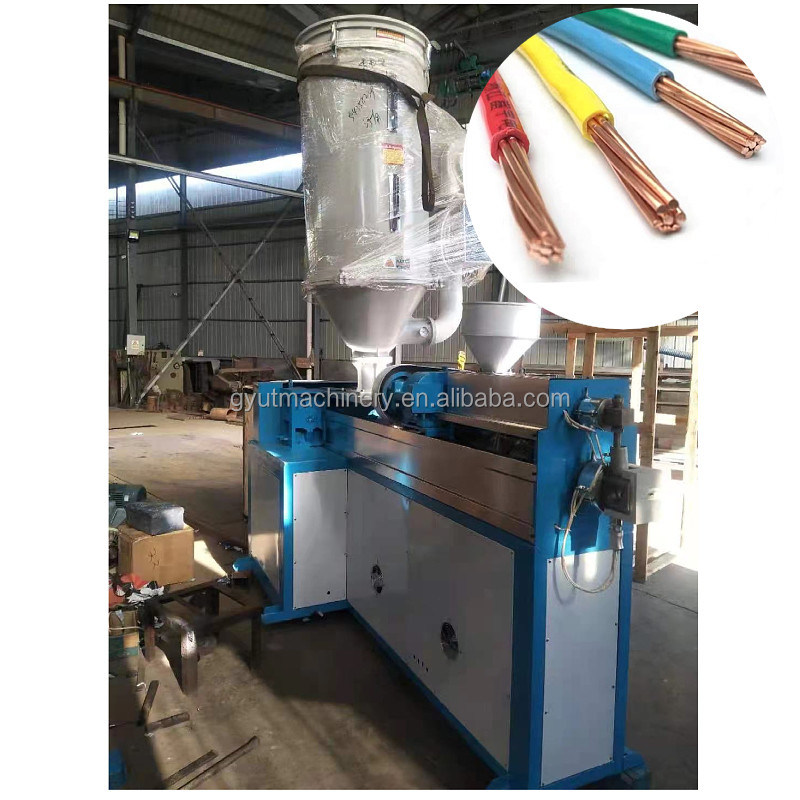

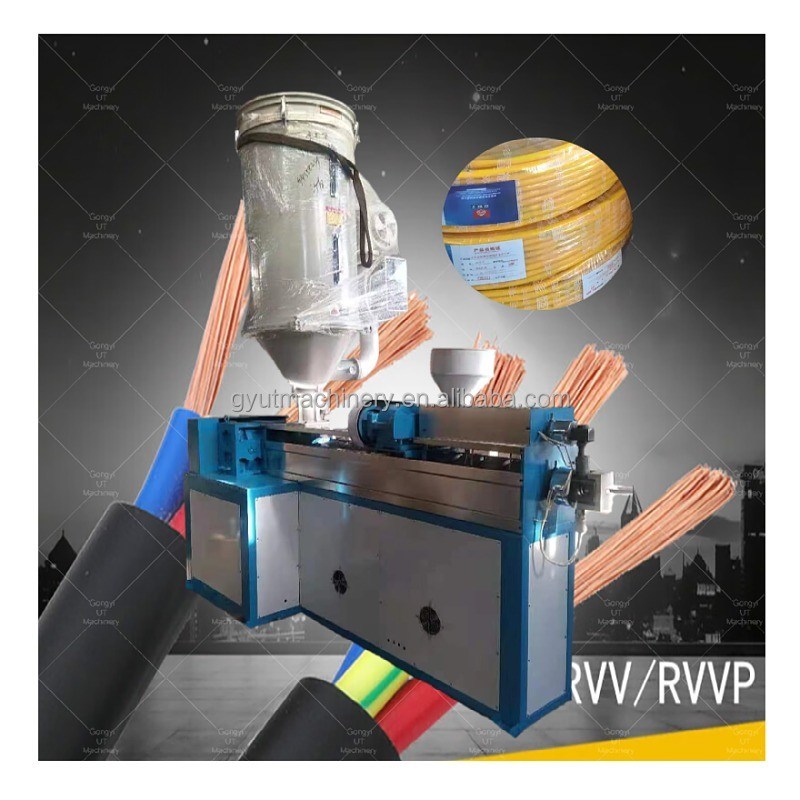

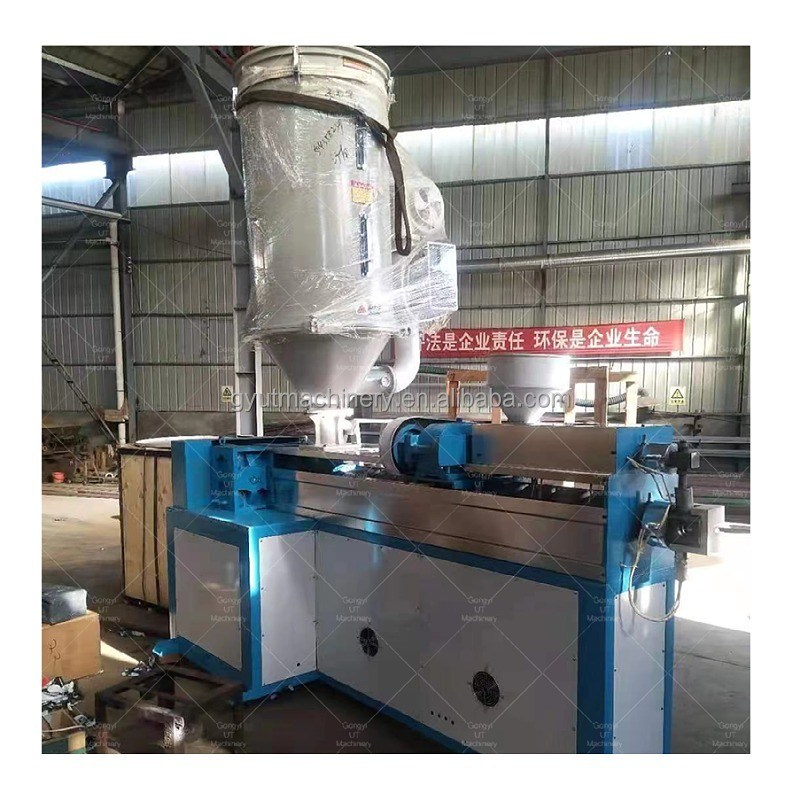

80mm Wire Cable Extrusion machine

1). Equipment model: 80
2). Extruding output: 130 kg/hr (head open, ordinary soft PVC)
3). Screw and Screw barrel parameter:
A: Screw diameter: Φ80mm
B: Material: 38CrMoAlA, surface nitriding treatment, hardness HV935 or more.
C: Length to diameter ratio: 28:1
D: Speed range: 10 ~ 100rpm

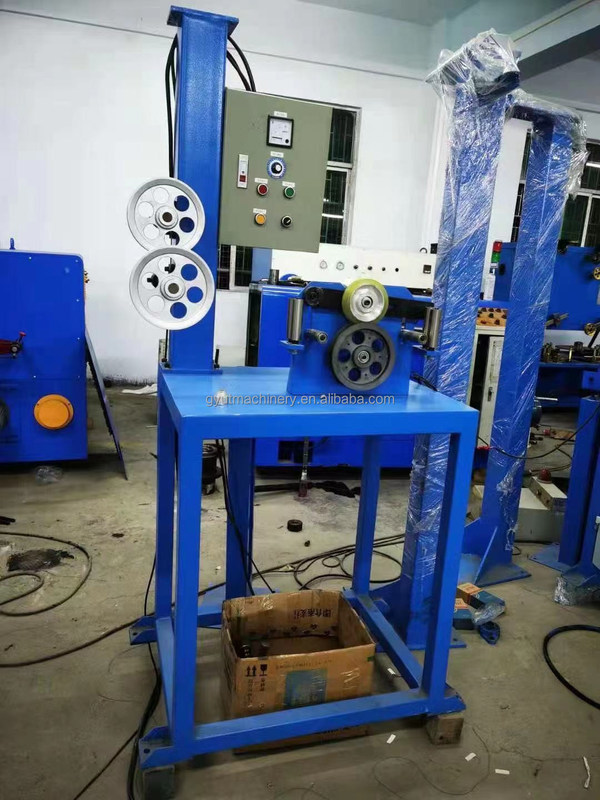

630 single-head magnetic powder tension pay-off machine

Equipment model: FX630
Maximum line speed: max: 300m/min
Wire reel size: 400-630mm
Reel width: 275-475
Top shaft mode: pneumatic top tight (double cylinder structure)
Braking method: pneumatic disc brake
Disconnection check: limited position contact detection,disconnection stop device
Strength mode: 5KG magnetic powder strength Lift: electric lift

12 m cooling sink

1). Equipment model:SCGD08
2). Material: SUS304 stainless steel
3).Structure:length 8 m
4).Shape:U-shaped sink,height:130MM,width:140MM

the horizontal storage rack

1). Equipment model:CXSP12/300
2). Scope of application:Power Core Wire,BV 6mm2 and
below single rigid wire,wire diameter≤12mm soft sheath
3). Storage line:Horizontal,I-beam,length 12 m
4). Storage tension : 2HP gear motor and 10KG magnetic
powder clutch.
5). Transmission:Multi-core cable
6). Storage length:10M-200M.

Extruding Insulation Layer Copper Wire Cable Production Line Customizable Green Color 1

Extruding Insulation Layer Copper Wire Cable Production Line Customizable Green Color 5

Extruding Insulation Layer Copper Wire Cable Production Line Customizable Green Color 11

3. Pre-sale Training:

In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes

1) Correct operating mode

2) Correct maintenance way

Since the shipment date, our company freely assuring period of after-sale maintenance service is:

1)1year for mechanical part

2)6 months for electrical part

4.Technical data:

	UNIT	UT-70
diameter of wire core	mm	10-40
Coil in speed	m/min	4~60
screw diameter	mm	70
L/D ratio		25:1
compression ratio		1:3
host power	kw	30
heating power	kw	15-25
hauling power	kw	7.5
hauling speed	m/min	3-50
caterpillar traction(max)	t	1600
cooling groove length	m	8
take up bobbin diameter	mm	Φ1250
torsion of take up motor	N·m	40

5. The other wire cable making machine:

Extruding Insulation Layer Copper Wire Cable Production Line Customizable Green Color 14

Company Information

Gongyi UT Machinery co.,ltd is located in Gongyi city, Henan province, a high-tech manufacturer specializing in research and development of equipment. As a professional manufacturer, we have a highly qualified and skilled engineer team, and advanced assembly workshop. Our products sell well at home and abroad, and enjoy good reputation.

We provide high-quality products and professional technical support.We aim at the management of market-oriented and customer-satisfied, we have a plot of improvement, constant upgrading product quality and service.

Our company has always adhered to the tenet of "honesty for basis, quality for living, innovation as the theme, and development as the focus", abide by the quality commitment to users, and won the trust of customers.

FAQ

1.WHAT SERVICES DO WE OFFER?
Pre-sale communication → Design proposal, signature confirmation→
Customized production→ Test machine before shipment →Package &
delivery→ Engineer installation→Training operator → Technical support
2.PAYMENT TERMS:
50% of total amount should be paid by T/T as down payment ,the balance (50% of total amount) should be paid before delivery by T/T or irrevocable L/C by payment(at sight).
3.DELIVERY CONDITIONS:
3.1 Delivery condition: FOB Qingdao/ Shanghai port or CIF destination Port.
3.2 Delivery terms: Within 10-14 working days after receipt of advanced payment, the seller should inform the buyer to do inspection,the seller should finish packing of goods and ready for shipment within 15 working days after the seller receipt the full payment.
4.WARRANTY TERMS
5.1 Warranty period: 12 months, starting from the machine receipt in customer's warehouse
5.2 Seller shall grant: services and spare parts, free-of-charge service throughout the entire equipment during warranty period.
5.3 long life service: the seller should provide long life service for the sold goods, the buyer pay for needed spare parts after the 12months warranty terms.
5.INSPECTION
When the machine finished, the seller should inform the buyer to do inspection before shipment, the seller guaranty good performance of all the sold goods.the seller undertake the material cost for the machine inspection in seller's factory. the buyer should come to seller's factory to do the inspection work, or the buyer could entrust any third party to come to seller's factory to do the inspection work.
6.INSTALLATION AND EQUIPMENT COMMISSIONING:
if the buyer requires, the seller should send technician team to buyer's factory for installation and testing the whole line, and the buyer should undertake the whole food/place and round tickets (airplane, food, hotel, and so on), and pay salary to engineer for 100 usd/day/engineer.

Extruding Insulation Layer Copper Wire Cable Production Line Customizable Green Color 18

Our Services

Our Services:

1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has 12 month guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer have any problem during the operation, we will offer technical solutions.

Extruding Insulation Layer Copper Wire Cable Production Line Customizable Green Color 19
