Super Bio-char Wood Biomass Charcoal Carbonization Making Furnace from Gongyi UT Machinery
The Introduction of carbonization furnace
Our energysaving environmental continuous carbonization furnace can producecharcoal powder continuously by burning the combustible gas from the gasifier stove .It has the marked features of energy-saving.environmental-friendly and high efficiency .
Structure:
1.Gasifier: to produce the gas by burning biomass
2.gas cooling and purifying system : to cool and purify the gas
3.Carbonization furnace : conformed of 4or 8 pipelines, finalize heating and carbonization .
4.Cooling and discharging system: to cool and discharge the finished charcoal.
It includes below parts:
♦ Gasifier: to produce gas by heating sawdust or wood wastes.
The produced gas will be used for heating the raw material inner the carbonization stove untill the raw material can spontaneous combustion;
♦Gas cooling and purifying system : to cool and purify the gas which produced from the process of dry distillation.
The purify system will connect with water pump, and the water is recycled water.
♦ Carbonization furnace: conformed of 4 pipelines, finalize heating and carbonization.
The top two layers is moisture removal process, and the last two layers is pyrolysis process.
♦ Cooling and discharging system: to cool and discharge the finished charcoal.
When the charcoal comes out, the temperature will be about 20-30 degree.
| type | power(KW) |
| 325 Single group | 17.5 |
| 325 Double group | 21.5 |
| 377 Single group | 17.5 |
| 377 Double group | 21.5 |
| 426 Single group | 17.5 |
| 426 Double group | 21.5 |
| 450 Double group | 17.5 |
| 450 Double group | 21.5 |
Raw material for charocal carbonization furnace:
Sawdust , rice husk , coconut shell, palm shell , sunflower shell, bamboo shavings etc.
The size should be less than 15mm.

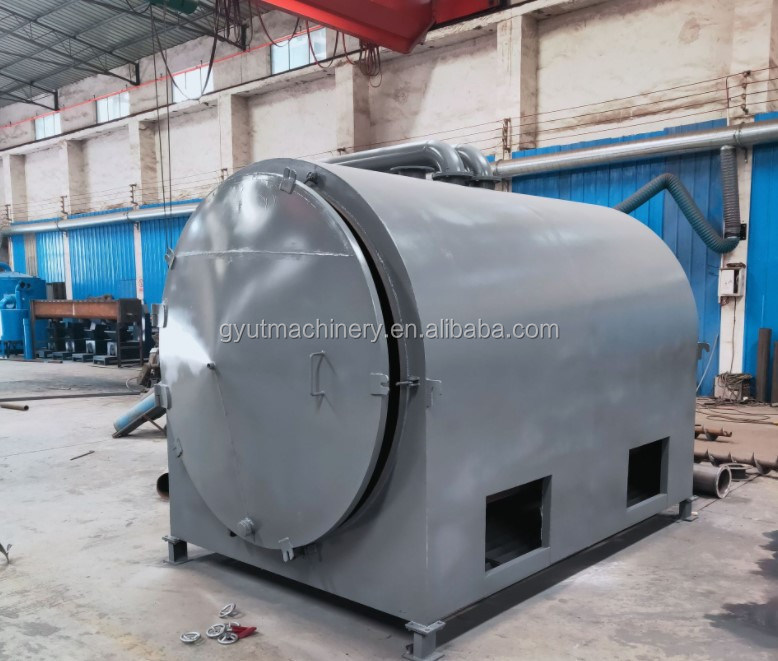

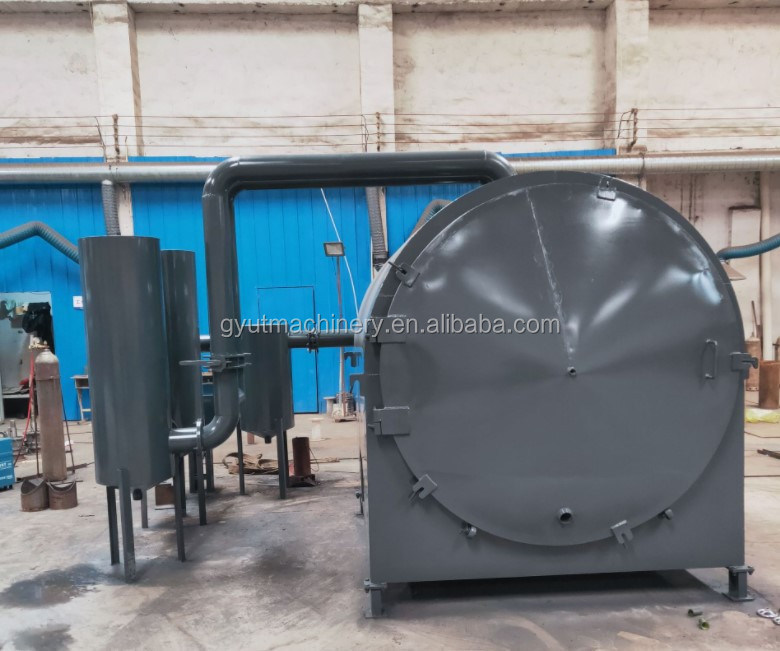

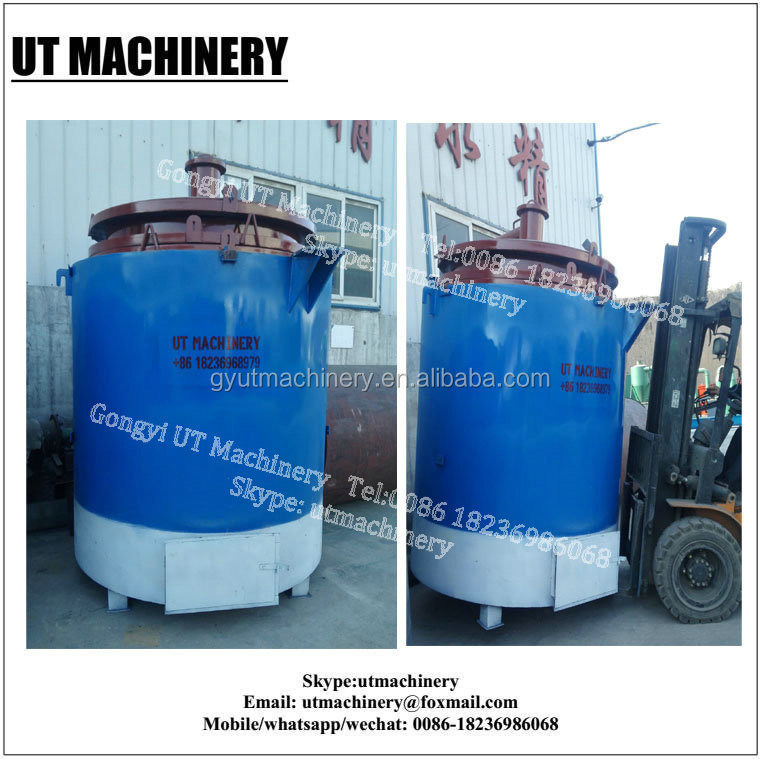

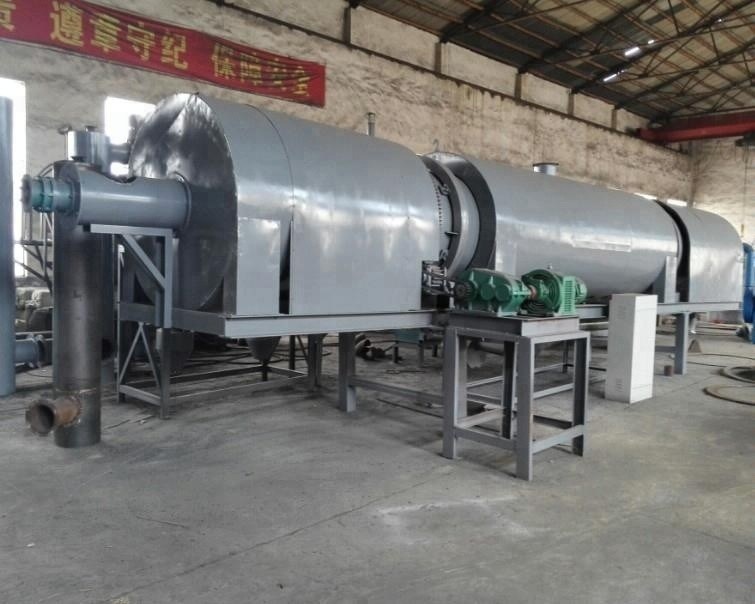

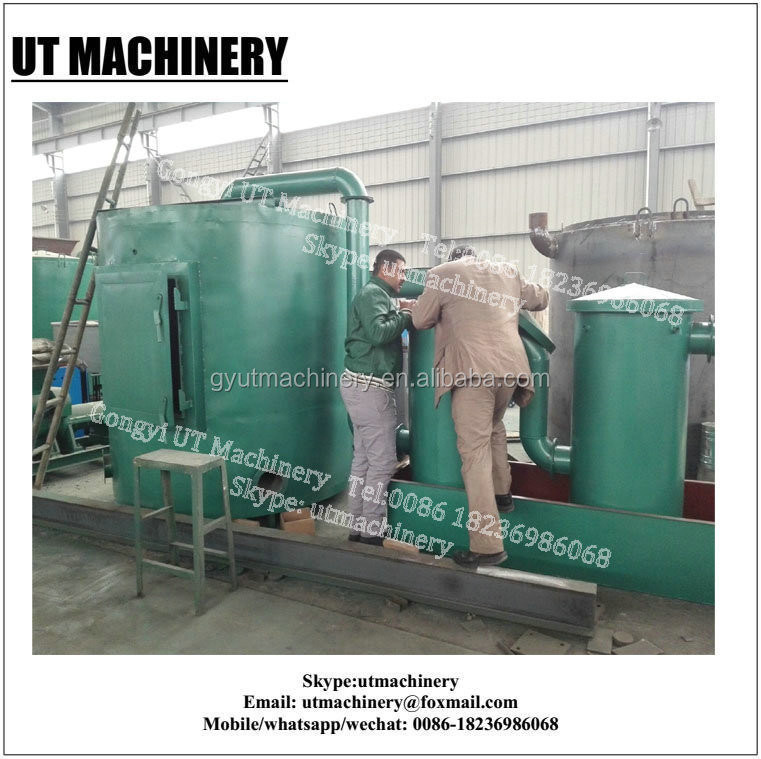

Pictures of carbonization furnace:
Packaging & Shipping
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Our Services
Pre-sale:
1. Suggest to client suitable models of our carbonization furnace, according to the raw material, including its type, huimidity, final charcoal capacity requirements.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
