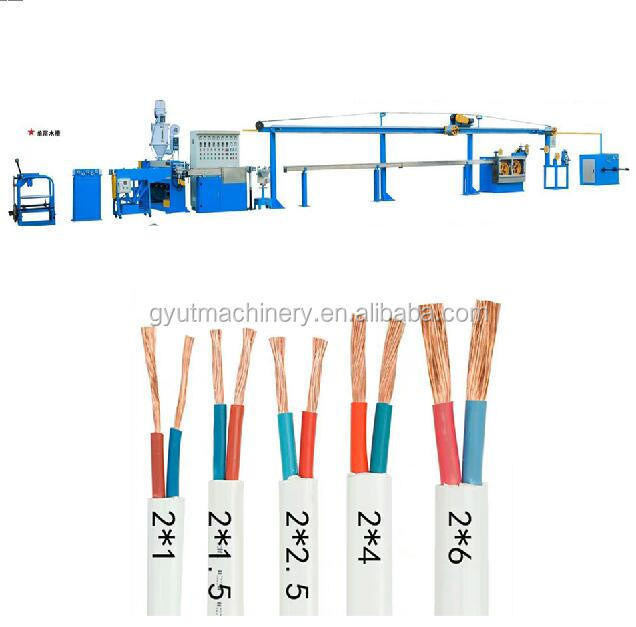

Name: 65/75/90/120 Power Wire Extruder Equipment for 1.5-20MM Electric Cable Making Machines
Brand: Gongyi UT Machinery Trade Co., Ltd.
SKU: UT-90
Price: 14,650.00 USD
Availability: InStock

Home > Products > Wire Cable Making Machine >

65/75/90/120 Power Wire Extruder Equipment for 1.5-20MM Electric Cable Making Machines

Place of Origin:

China

Brand Name:

Model Number:

UT-90

Request A Quote

65/75/90/120 Power Wire Extruder Equipment for 1.5-20MM Electric Cable Making Machines

Product Details

Use:

Extruding

Usage:

Insulation

Color:

Blue,red,green Or As Customer's Requirement

Control Box:

International Standard

Available Material:

PVC/PE/PP/LSHF

Application:

Electric Wire Cable Making Machine

Wire Size:

1.5-20MM

Useage:

Wire Cable Insulation

Model:

65/75/90/120

Motor Power:

30kw

Voltage:

380v

Port:

QINGDAO PORT, NINGBO PORT, SHANGHAI PORT, TIANJIN PORT

Motor:

220v/380v/415v/customzied

Color:

Customzied

Color:

Customzied

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

wooden box

Supply Ability

18 Set/Sets per Week

Innovative Cable Coiling Machine for Easy Wire Wrapping and Packing

Get Best Price

75 40 Wire Cable Electric Copper Wire Extrusion Machines for Industry Cable Production

Get Best Price

320mm Coil Outside Diameter Copper Foil Spooler Coiling Machine with 2.2kw Motor Power

Get Best Price

1250mm Wire and Cable Bobbin Laying-Up Machine for Second Hand Wood Drum Stranding

Get Best Price

Contact Now

Product Description

Product Overview

pvc wire cable extrusion machine
Gongyi UT Machinery

contact:orion
whatsapp:0086-18236968979

The extruder can work with TPU, NYLON, LSHF etc. thermoplastic compound by using different design screw.

FEATURES AT A GLANCE

500 meter/minuter cable machine
1. Power: 30KW AC motor + inverter
2. Gear box: 200 Grinding gear
3. Screw: 80mm, L/D=28:1, Speed: 10-110RPM, Material: SACM-2, surface hard chrome plating after nitriding treatment, suits for the
extrusion of PVC, PE.

Right elevation

Left elevation

Front elevation

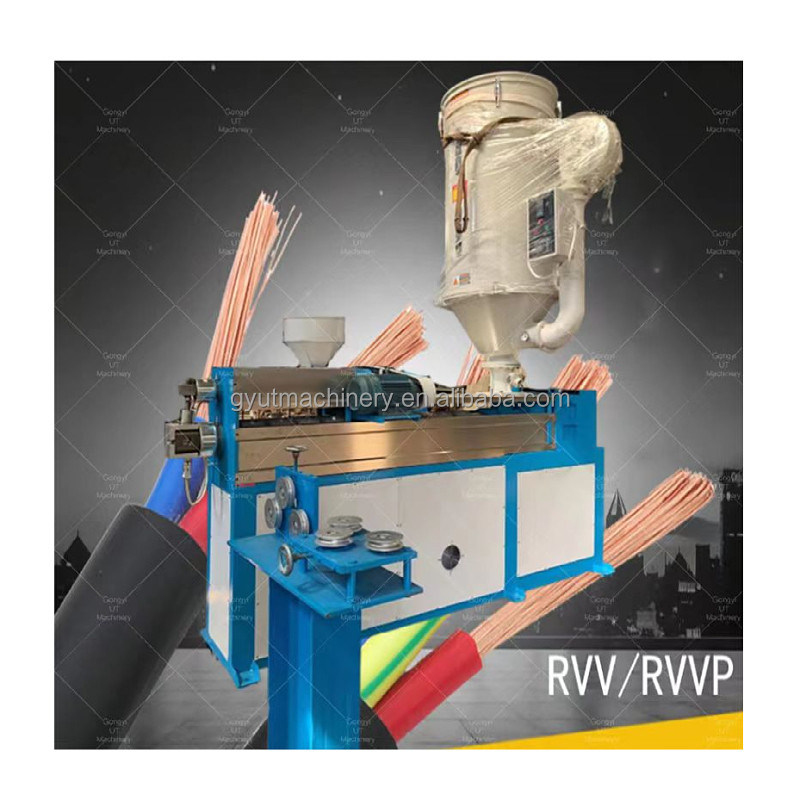

the extruder
extruder the insulation layer

Screw: 80mm,
L/D=28:1

Drying machine and the automatic feeder
Capacity:100kg,

Attached to the hot air electric dryer , barrel temperature and heating time is set.
electric heat and power plant 4KW
Automatic feeding machine

Straightening wheel
Type: Horizontal five-wheel straightening wheel
Tension straightening: manual adjustment
The five-wheel guide wheel can be positioned in two or three directions up and down, and the relative position can be adjusted.

Cooling tank
Supported with 3 U-shaped racks, with the height being adjustable American blow-off nozzle

The capstan
Double-wheel anodic oxidation surface strengthening

Upper and lower structures or left and right structures are adopted

SALES AND SERVICE NETWORK

sale-service

Pre-sale:
1. Suggest to client suitable Bare wire diameter, final product capacity.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.

After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
