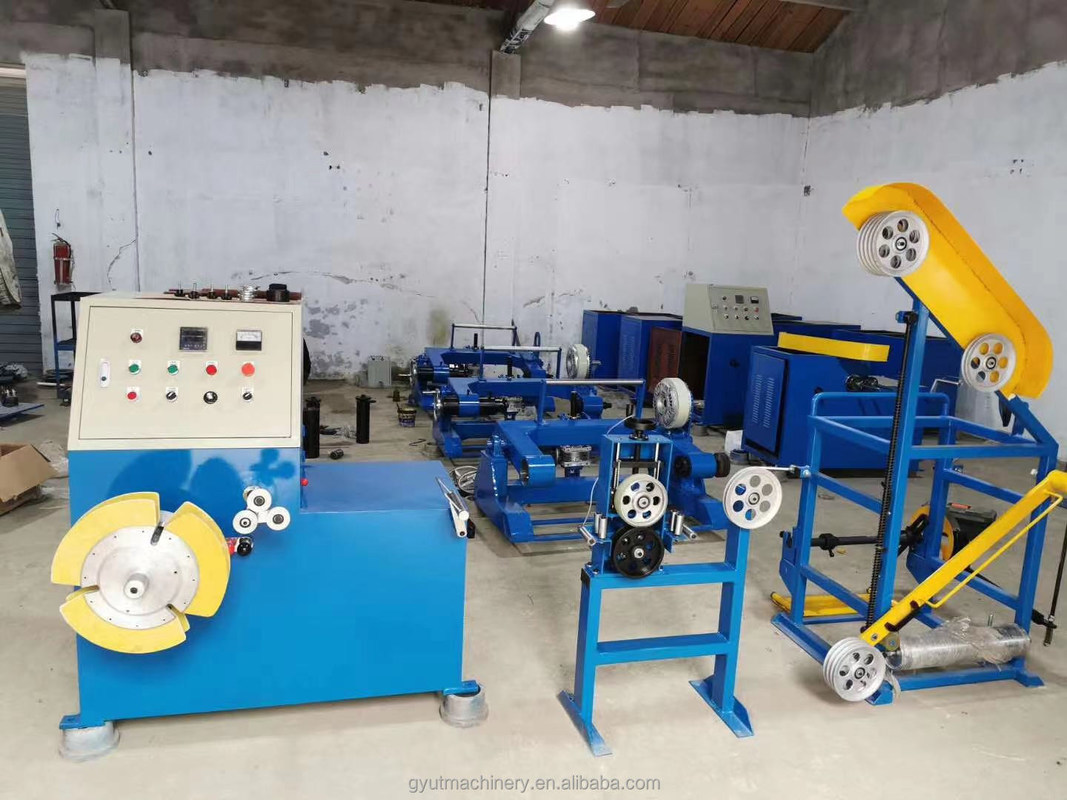

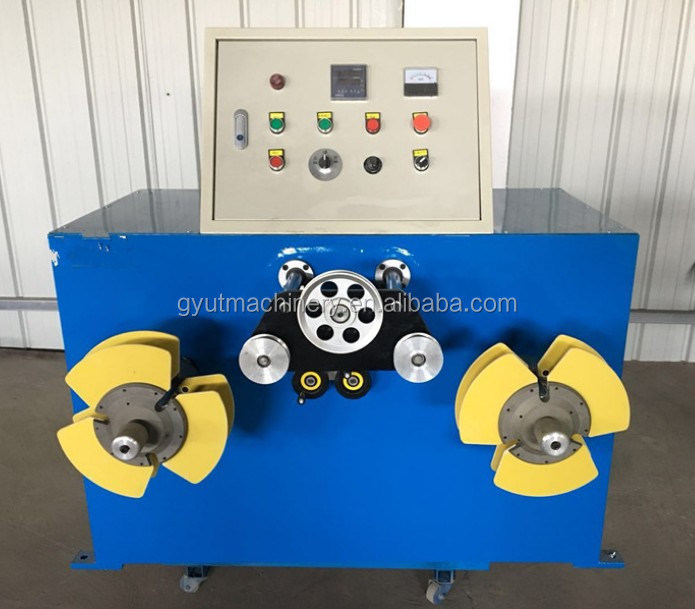

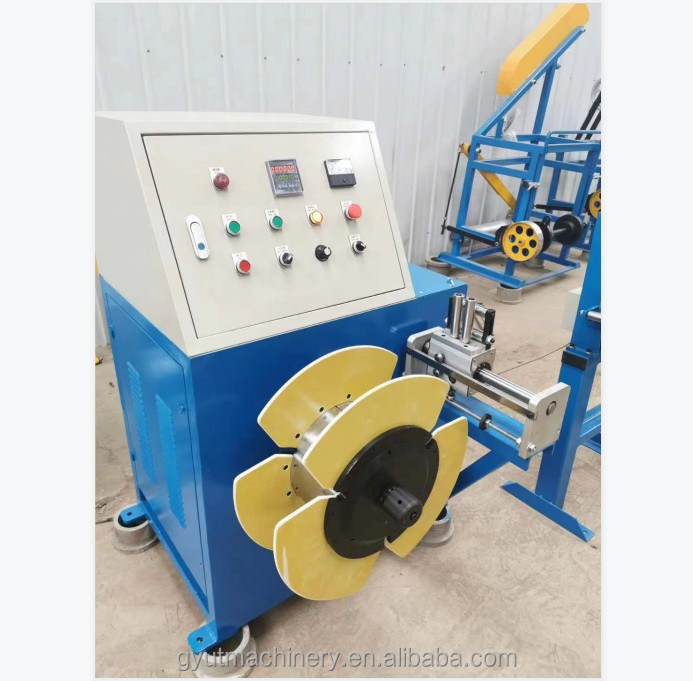

Automatical coil cable reel machine I Wire cable coiling or winding machines price
Following is the details of machine:
1.Application
The equipment is used for rewinding aluminum rods with a diameter of 9.5mm and 12mm. Winding,laying-out,package turning and other actions are intelligently controlled by PLC. The laying-out is driven by overall movement of the servo take-up machine, ensure the aluminum rods after the coiling are arranged orderly, reduce the volume so that easy to transport and store.
2.Equipment list
2.1 Paying-off supporter: 1set
2.2 Horizontal straightening machine: 1 set
2.3 Vertical straightening machine: 1 set
2.4 Taking-up: 1set
2.5 Package turning: 1set
2.6 Electrical cabinet: 1set
| Model | 630mm | 1250mm | 1250-1600mm |
| Applicable wire range | 0.5-6mm2 | 10-70mm2 | 10-240mm2 |
| Traversing tension | Automatically |
| Main motor speed | 0-600 r/min | 0-300 r/min | 0-300 r/min |
| Loading bobbin type | Lever-type | Electric type | Electric type |
| Pay-off bibbin model | Φ400-630mm | Φ800-1250mm | Φ1000-1600mm |
| Tapping model | Outside Dia .≤320mm Inner Dia. 120mm Width30-100mm | Outside Dia.≤600mm Inner Dia. 200300mm Width60-150mm 150-200mm | 50-250 |
| Power | 2.2kw | 3kw | 4kw |
| Meter counter structure | Type of wheel pressure | Double wheel type with air pressure | Double wheel type with air pressure |
| Induction type/ Measurement accuracy | Rotary encoder/0.5% | Rotary encoder/0.5% | Rotary encoder/0.5% |
Packaging & Shipping
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Our Services
Pre-sale:
1. Suggest to client suitable models according to the raw material, including its type, huimidity, final charcoal capacity requirements.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
