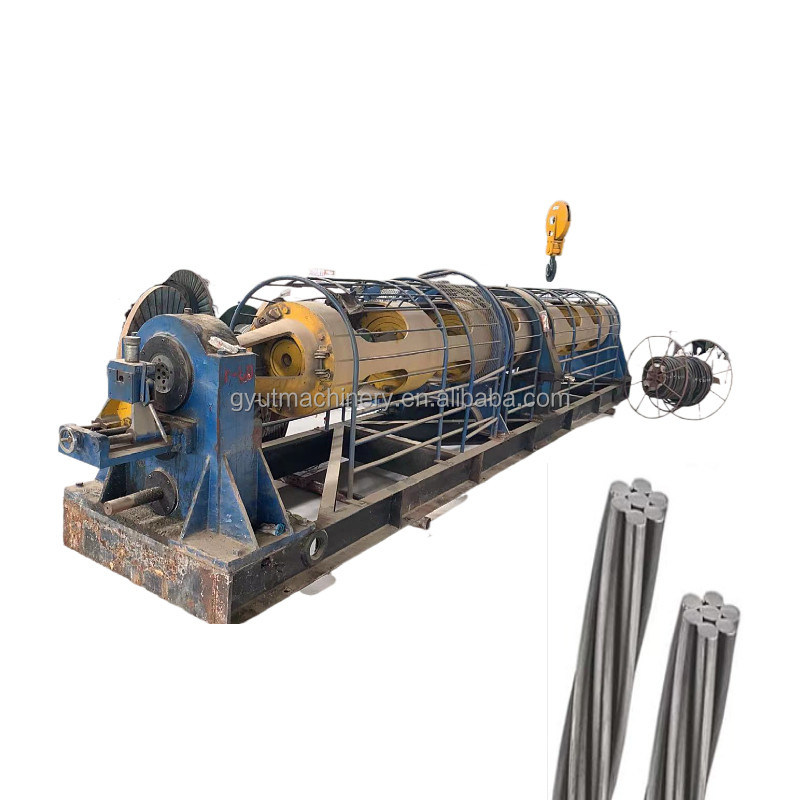

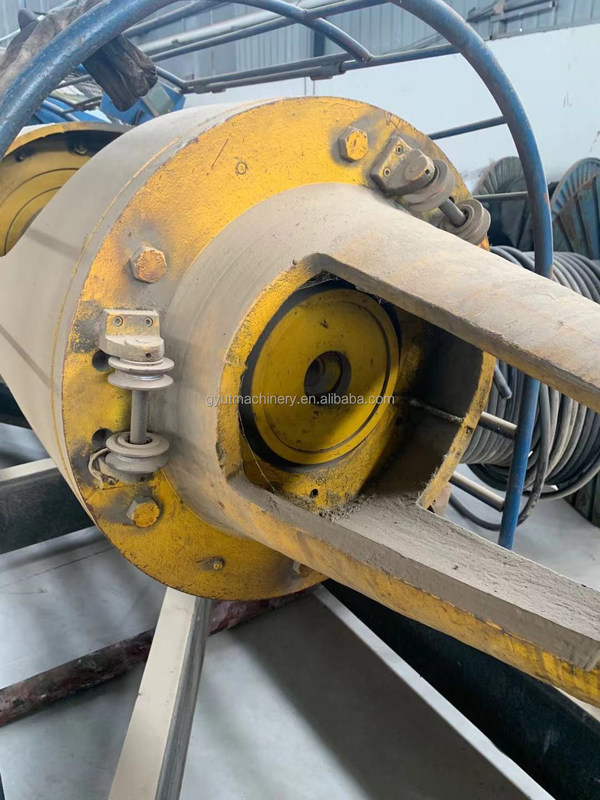

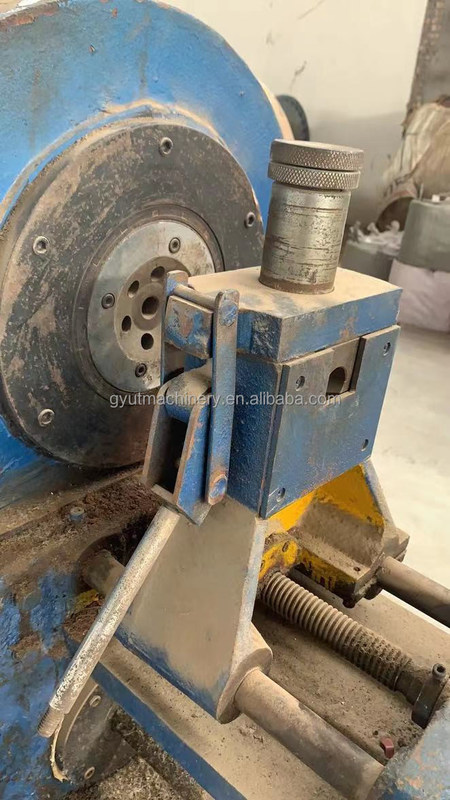

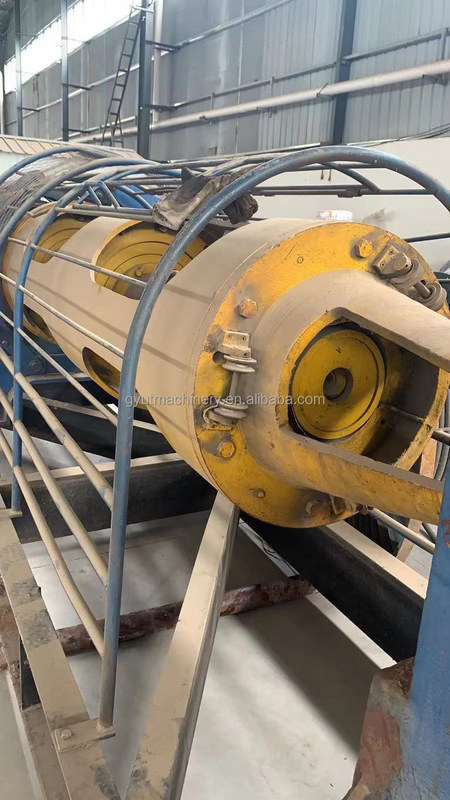

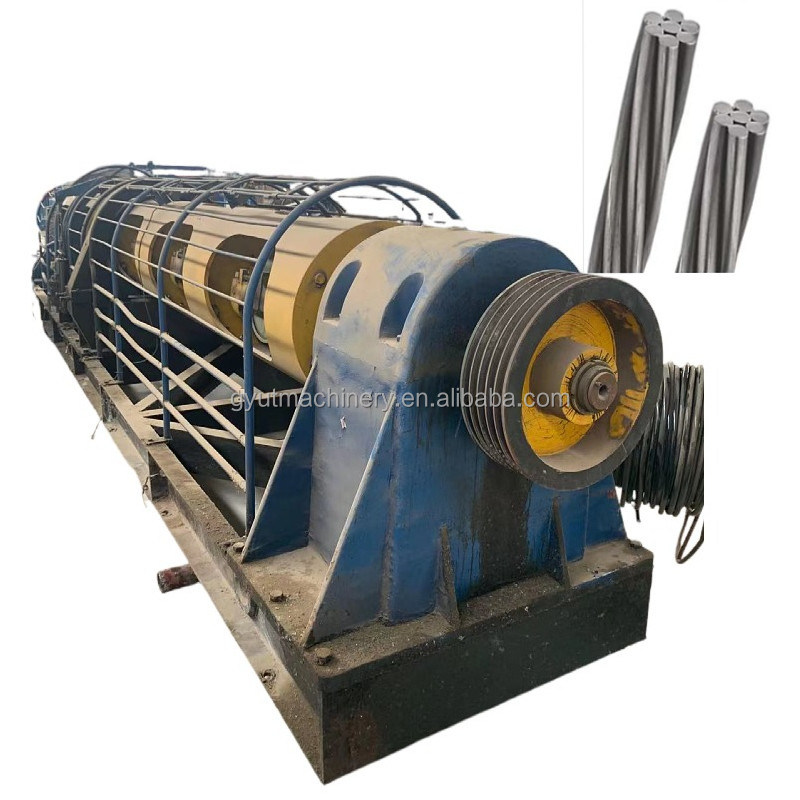

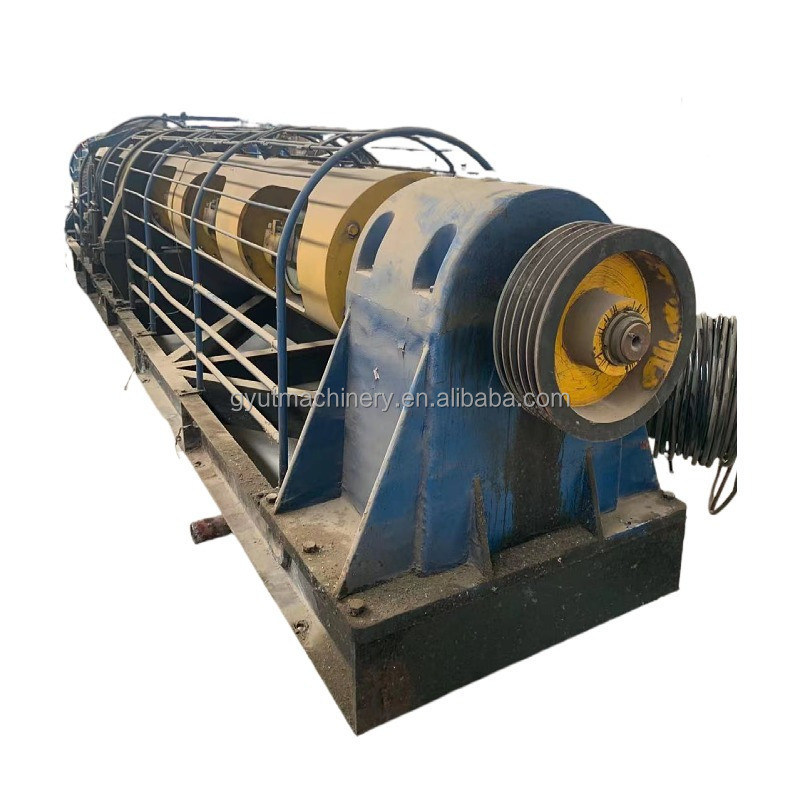

Second Hand wire rope tubular stranding machine, Good Price Second Hand steel wire rope Machine
Product Description
It is suitable for the twisted and forming of fan shaped conductor, the circular conductor is twisted and pressed, and the twisted conductor is pretwisted and pressed.
Features:
1. Central shaft does not bear the reels.
2. High rigid, high speed and low inertia high speed and low inertia.
3. No abrasion damage when stranding.
4. Most advanced emergency stop device.
5. Suitable for power cables and high compacted cross linking cables.
6. Siemens PLC control system, operating on touch screen.
Parameter:
Here is the technology datas of ,we have different model for different wire cable twisting and working condition:
| | 1+6/400 | 1+6/500 | 1+6/630 |
| Single wire dia(mm) | 1.2-5.0 | 1.2-5.0 | 1.5-5.0 |
| Max.strand dia(mm) | 45 | 45 | 45 |
| Rotating speed(r/min) | 69-158 | 69-158 | 60-166 |
| Stranding pitch(mm) | 66-1197 | 66-1197 | 66-1197 |
| Dia of bobbin(mm) | 400 | 500 | 630 |
| Motor power(kw) | 45 | 75 | 132 |
We also could supply all kinds of wire twisting machine:
Electric Wire and Cable equipment series:
1. 25~150mm extruding machine (extruder);
2. 250~630mm high speed twisting machine(bunching machine);
3. 630~1000mm Hanging framed type single stranding machine;
4. 630~1250mm Cantilever type single stranding machine;
5. 400~1250mm high speed double twisting machine;
6. High speed cutting machine;
7. High spooler back twist;
8. Single-layer,Double-layer,Triple-layer wrapping machine;
9.Small/Middle/large cross-section automatic traverse coiling machine;
10. Outside device and Auxiliary machinery.
Shipping and packing:
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Pre-sale:
1. Suggest to client suitable raw material, final product capacity.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
