Description:
1.Mainly used for wire diameter 0.5mm-15mm, small section BVV, BVR building cable.
2.Loading and unloading pay-off wheel by lever type ,cantilever conbination guide wheel, braking system with lever mechanism

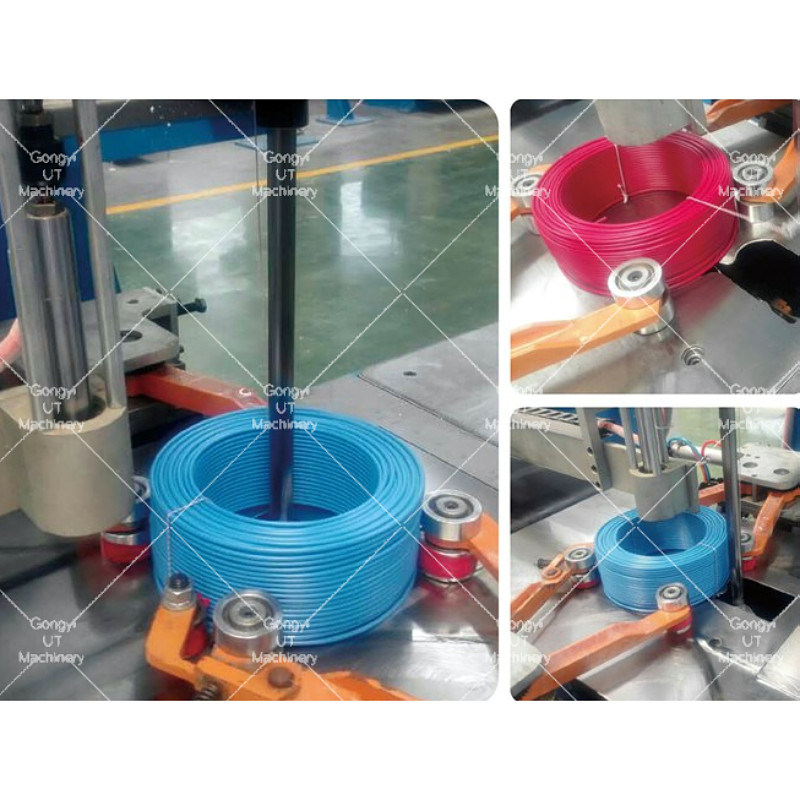

3.With guide wheel and swell strength for automatically composing,orderly and nice looking,nomally 30-40 seconds per circle
4. It can match sparker,which on-line test the cable voltage ( nude or good in quality ) while packing .
Feature:
A: the automatic line, one operator;
B: take-up knitting speed is 2 to 3 times of the traditional models;
C: fast DaZa device, knitting wire strapping on the machine after can be quickly and easily removed, reduced the labor intensity;
D: wire into a circle, DaZa, plastic film packaging three process one can operate independently.
E: the automatic vent line, line on the wire itself stress, using the combination of pulleys scientific principle, can ensure the thread pitch and wire diameter size is not affected, make wire neat, beautiful.
| SPECIFICATIONS |
| Model | Φ630mm | Φ1250mm | Φ1250-Φ1600mm |
| Applicable wire range | 0.5-6mm2 | 10-70mm2 | 10-240mm2 |
| Traversing tension | Automatically | | |
| Main motor speed | 0-600 r/min | 0-300 r/min | 0-300 r/min |
| Loading bobbin type | Lever-type | Electric type | Electric type |
| Pay-off bibbin model | Φ400-630mm | Φ800-1250mm | Φ1000-1600mm |
| Tapping model | Outside Dia .≤320mm
Inner Dia. 120mm
Width30-100mm | Outside Dia.≤600mm
Inner Dia. 200300mm
Width60-150mm
150-200mm | 50-250 |
| Power | 2.2kw | 3kw | 4kw |
| Meter counter structure | Type of wheel pressure | Double wheel type
with air pressure | Double wheel type
with air pressure |
| Induction type/
Measurement accuracy | Rotary encoder/0.5% | Rotary encoder/0.5% | Rotary encoder/0.5% |
Into DaZa machine high speed automatic vent line by line tension motorized, meter storage devices, quick knitting DaZa device of three parts, and optional sparks machine with caliper gauge online detection point and line diameter size.Introduced as follows:
1: the accumulation of tension pay-off stand:
A: the storage line pay-off use thread tension remained stable.
B: according to the different wire diameter of wire rod.Size of the tension can be adjusted by spring and pulley block.
C: (1) the brake lever, (2) without shaft hoist double taper Chinese brake.Wheel downward swing arm, pay-off, the greater the resistance when the host to set to circle length rapid braking, idler pulley to the most bottom swing arm, steel pay-off resistance, the largest steel brake can be 1-2 seconds without the scribble.
D: (1) the handle type (2) dual plunger type on the lower plate, which can realize fast easy replacement store coil, coil storage range from 0-630 mm,
2: electronic meter device:
A: roller adopt one-way bearing, wire can only forward can't back.
B: the electronic counter sensor improve the meter accuracy.
C: meter wheel with high temperature phosphating treatment, the press pulley using imported PU bag lugs, high hardness, resistance to friction losses, wire not compression deformation.

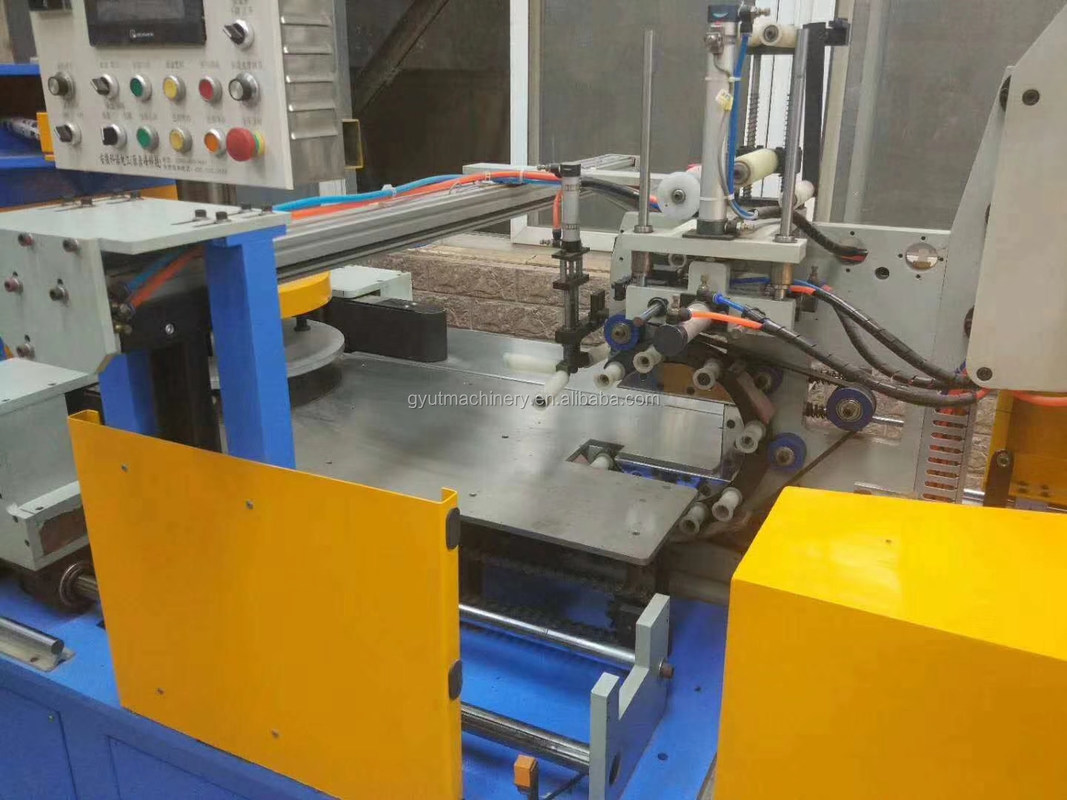

3: quick knitting DaZa host:
A: automatic tension wiring devices, linear velocity of 0-500 r/min, are free to choose, adjust and single operation.
B: automatic shrink DaZa plate can quickly complete the loading and unloading, directly after knitting strapping on the machine and can easily remove, operation simple and convenient.
C: automatic shrink after rapid DaZa plate damper position can be adjusted freely, knitting DaZa 50-100 mm thickness.
D: adopting the frequency conversion control soft start and brake technology, within the frequency converter set starting and accelerating time program, avoid speed too fast when the phone is switched on and the local deformation of fine wire.
