The Indroduction:

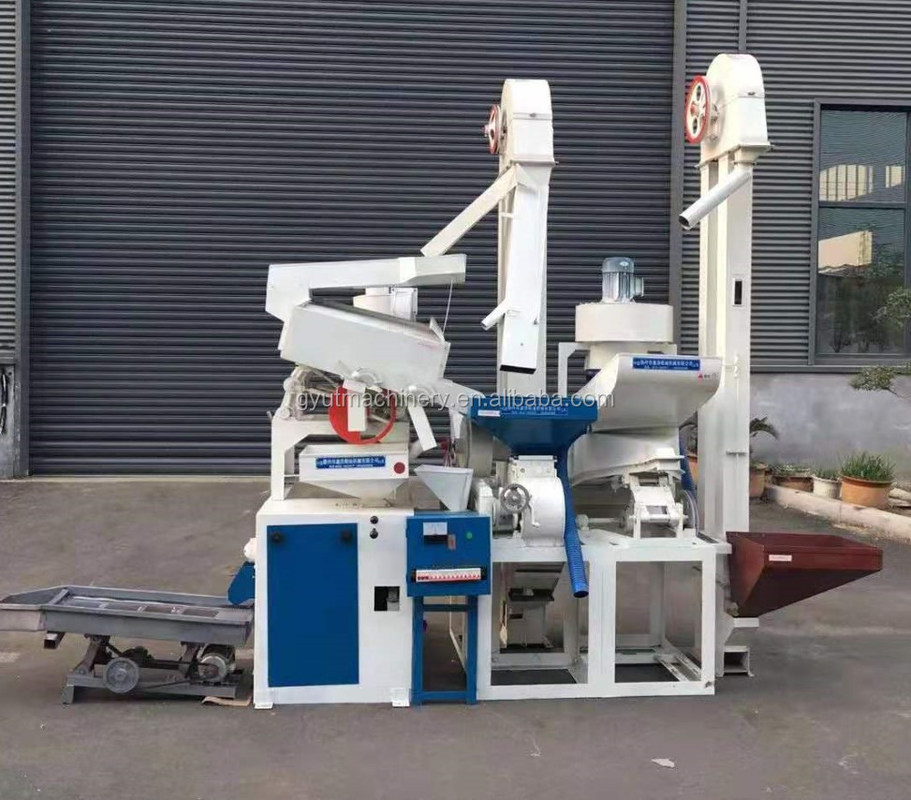

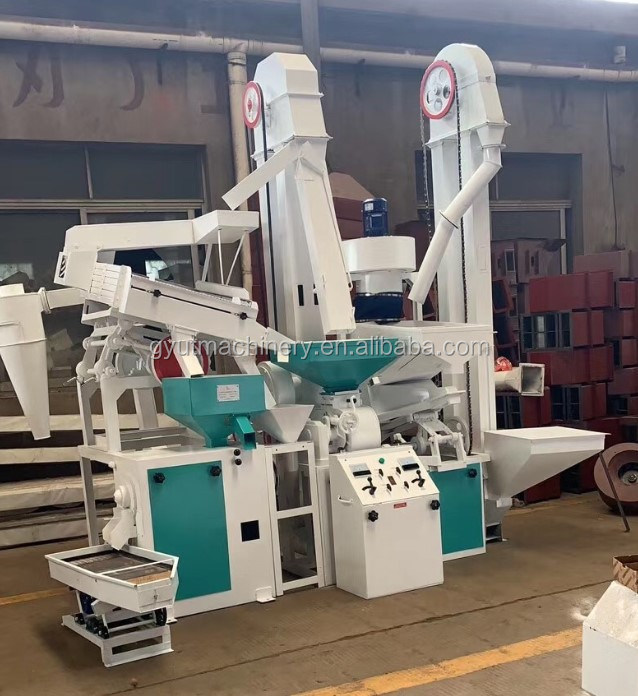

Commercial fully automatic rice machine is a new set of rice milling equipment integrating dust removal, dust removal, stone removal, rice milling and whitefly. The machine adopts a arranging structure, which is easy to operate and easy to maintain. It can be used for a small amount of processing or batch continuous operation.
The automatic rice machine has the advantages of good stone removal effect, fast shell breaking speed, good grain separation and separation effect, fast rice output and good dust removal effect. The rice output rate is high, the broken rice rate is low, the energy consumption is low, and the dust extraction system is uniquely designed. It can eliminate the hole on the wall and collect the whole bag, improve the whitefly system, and improve the situation of the previous dusting machine. The open storage process has been widely praised by users.
The basic style of the standard type of rice combination machine is as follows:
1. Elevators:
It includes two kinds elevators, single chain and double chain.
Single chain is for raw paddy, and double chain for paddy separator.
2. De-stoner:
The de-stoner could remove dusty and stone from raw paddy, it also include high press blower, to help clean the paddy.
3. Rice Huller:
Rice huller with double 6” Rubber Rollers. Remove chaff from Paddy.
Rice huller with a high pressure blower.
4. Paddy Separator:
Separating Brown rice, paddy, and mixture of paddy and brown rice.
5.Rice Whitener:
Mill brown rice into white rice. This rice whitener with emery roll, and high pressure blower and Bran collection device.
The rice mill Polisher is ideal equipment suitable for farms,towns,grain house or rice processing specialized households for rice processing,and can supply follow up equipment according to user demand, improve the processing precision further.
| Combined Parts | Power(kw) | Output(t/h) |
| Single | Total | Single | Total |
| UT32A Centrifugal suction fan | 2.2 | 29.2 | 1.8~2 | 1~1.2 |
| UT56 Suction Stoning Machine | 1.5 | 1.8~2 |
| Single Elevating Conveyor | 1.8~2 |
| UT20 Rubber-Roller Husker | 6.25 | 1.2~1.5 |
| Double Elevating Conveyor | 2×1~1.5 |
| UT70×7 Gravity Paddy Separator | 0.75 | 1.2~1.5 |
| UT16 Jet-air Emery Roll Rice Mill | 18.5 | 1~1.2 |
