Made in China Insulation Copper Wire Cable Making Machine, PVC wire cable extruder machine
Product Description

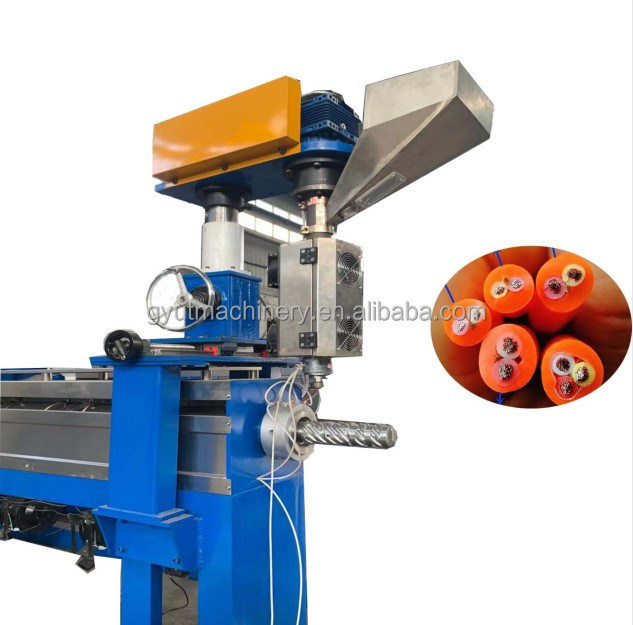

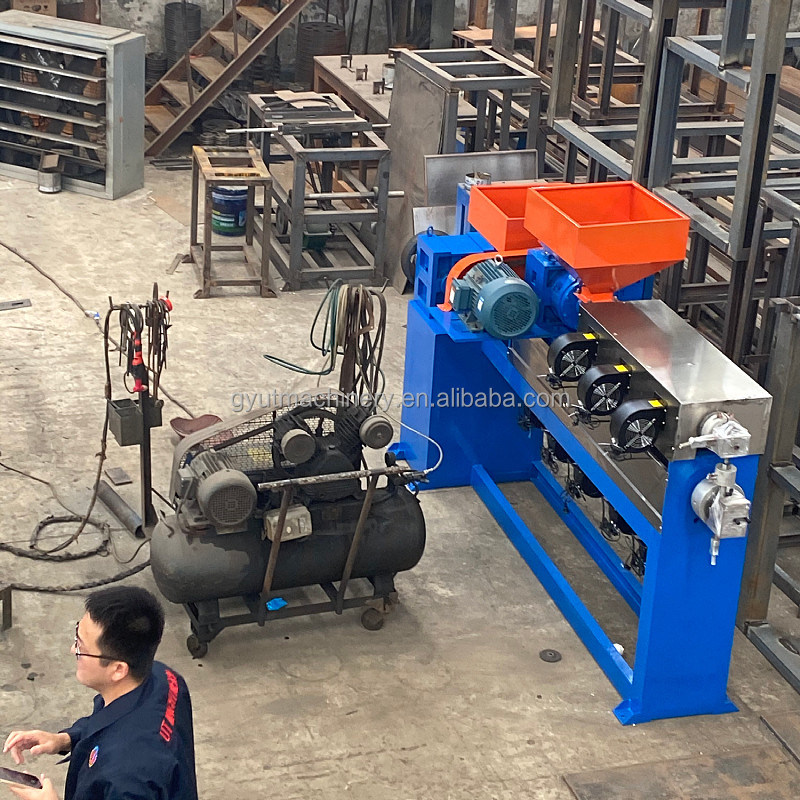

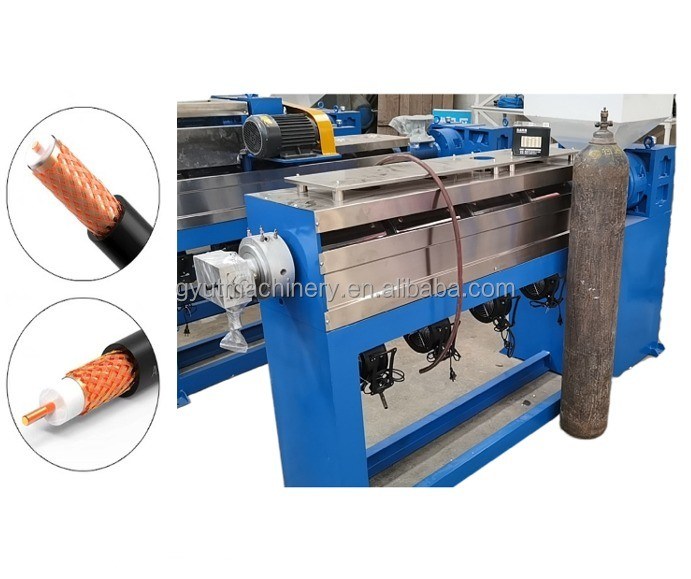

80mm Wire Cable Extrusion machine
1). Equipment model: 80
2). Extruding output: 130 kg/hr (head open, ordinary soft PVC)
3). Screw and Screw barrel parameter:
A: Screw diameter: Φ80mm
B: Material: 38CrMoAlA, surface nitriding treatment, hardness HV935 or more.
C: Length to diameter ratio: 28:1
D: Speed range: 10 ~ 100rpm

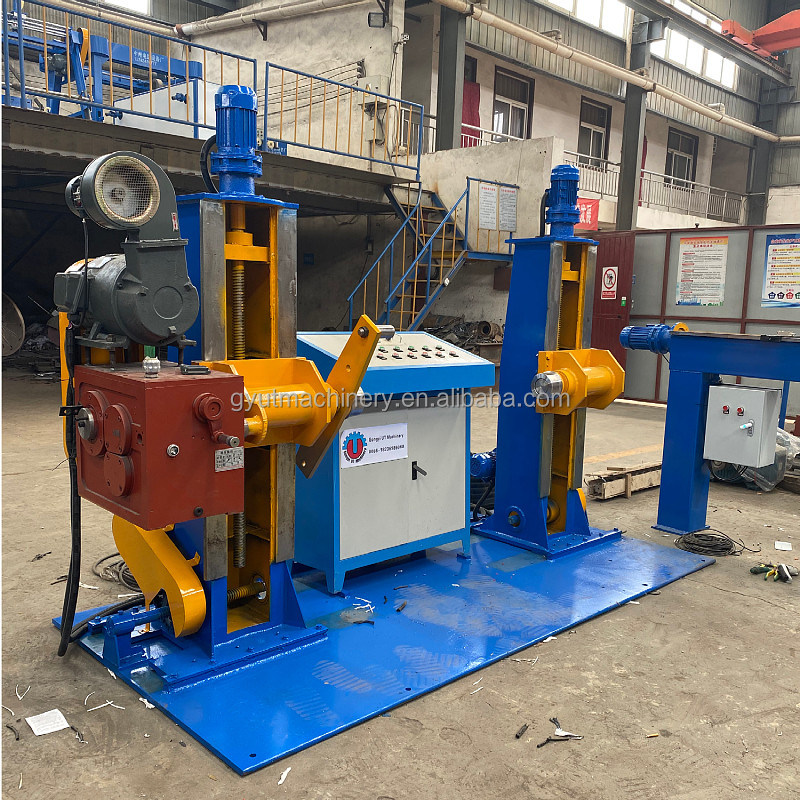

630 single-head magnetic powder tension pay-off machine
Equipment model: FX630
Maximum line speed: max: 300m/min
Wire reel size: 400-630mm
Reel width: 275-475
Top shaft mode: pneumatic top tight (double cylinder structure)
Braking method: pneumatic disc brake
Disconnection check: limited position contact detection,disconnection stop device
Strength mode: 5KG magnetic powder strength Lift: electric lift
12 m cooling sink
1). Equipment model:SCGD08
2). Material: SUS304 stainless steel
3).Structure:length 8 m
4).Shape:U-shaped sink,height:130MM,width:140MM
the horizontal storage rack
1). Equipment model:CXSP12/300
2). Scope of application:Power Core Wire,BV 6mm2 and
below single rigid wire,wire diameter≤12mm soft sheath
3). Storage line:Horizontal,I-beam,length 12 m
4). Storage tension : 2HP gear motor and 10KG magnetic
powder clutch.
5). Transmission:Multi-core cable
6). Storage length:10M-200M.
2.Main Equipment Configuration
1,double-shaft pay-off rack(large-shaft pay-off rack)
2,straightener platform
3,main motor
4,automatic dryer and hopper
5,electric apparatus main control cabinet
6,movable water trough
7,laser diameter gauge
8,high speed printing machine
9,fixed water-trough
10,double-wheels capstan
11,horizontal type wire-accumulator
12,power frequency sparker
13,double-shaft take-up machine,etc.
Can be optional for motorized pay-off rack,PLC control ,infuse color machine,high frequency sparker,etc.The concrete configuration can be adjustable according to client's requirment .
Our Services
Pre-sale:
1. Suggest to client suitable models according to the raw material, including its type, huimidity, final charcoal capacity requirements.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
