Name: 125kg/H-800kg/H Max Output High Speed Extruder Plastic Machine for Household Cables
Brand: Gongyi UT Machinery Trade Co., Ltd.
SKU: 70, 80, 90, 120, 150
Price: 14,650.00 USD
Availability: InStock

Home > Products > Ungrouped >

125kg/H-800kg/H Max Output High Speed Extruder Plastic Machine for Household Cables

Place of Origin:

China

Brand Name:

Model Number:

70, 80, 90, 120, 150

Request A Quote

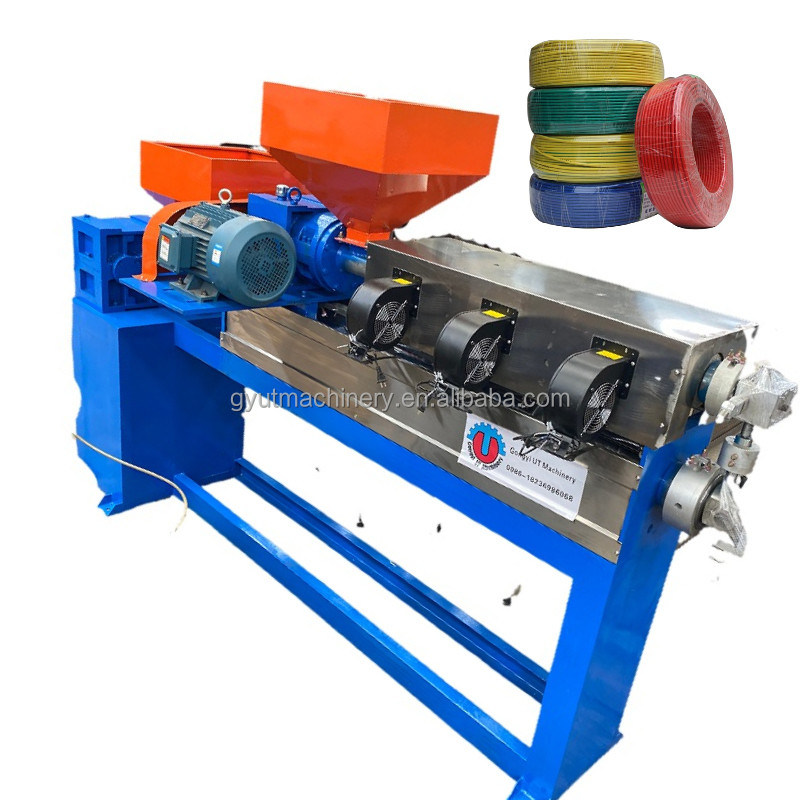

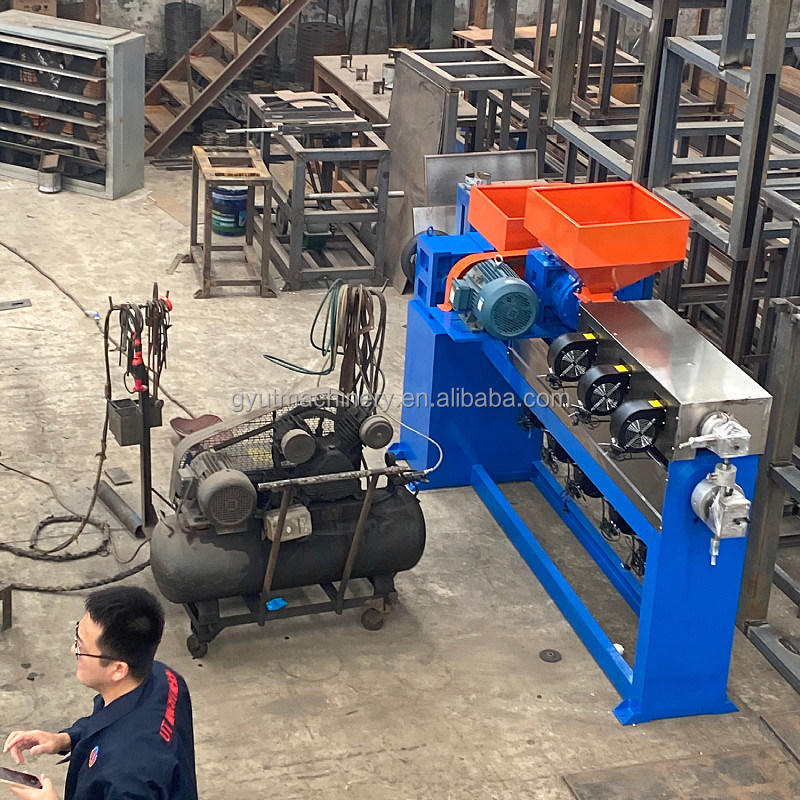

125kg/H-800kg/H Max Output High Speed Extruder Plastic Machine for Household Cables

Product Details

Use:

Extruding

Name:

80 Cable Extrusion Line

Warranty:

24 Month

Screw Dia.:

Screw Dia.: 70mm-150mm

Max Output:

Max Output: 125kg/H-800kg/H

High Speed:

High Output

Main Extruder Power:

22kw

Material:

Pvc Pellet

Motor:

220v/380v/415v/customzied

Color:

Customzied

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

wooden box

Corn Maize Grain Disk Mill Crushing Grinder for Dairy Products within 220v Voltage

Get Best Price

Advanced 500kg/day Hydroponic Fodder Machine for Livestock Forage Grass Barley Wheat

Get Best Price

Affordable Container Farming Grass Growing Machine Production Cycle 3-4 Days 22V Voltage

Get Best Price

Quick Cutt Baby Leaf Harvester 220V Green Micro Harvester with ≤1.5% Breakage Rate

Get Best Price

Contact Now

Product Description

Product Overview

12mm Household Electric Cable Making Machine extruder plastic machine electrical wire manufacturing machines

Gongyi UT Machinery
contact:Demi
whatsapp:0086-18037187350

The extruder can work with TPU, NYLON, LSHF etc. thermoplastic compound by using different design screw.

FEATURES AT A GLANCE

500 meter/minuter cable machine

1. Power: 30KW AC motor + inverter
2. Gear box: 200 Grinding gear
3. Screw: 80mm, L/D=28:1, Speed: 10-110RPM, Material: SACM-2, surface hard chrome plating after nitriding treatment, suits for the extrusion of PVC, PE.

capstan

extruder

take-up

extruder

extruder the insulation layer

Screw: 80mm,

L/D=28:1

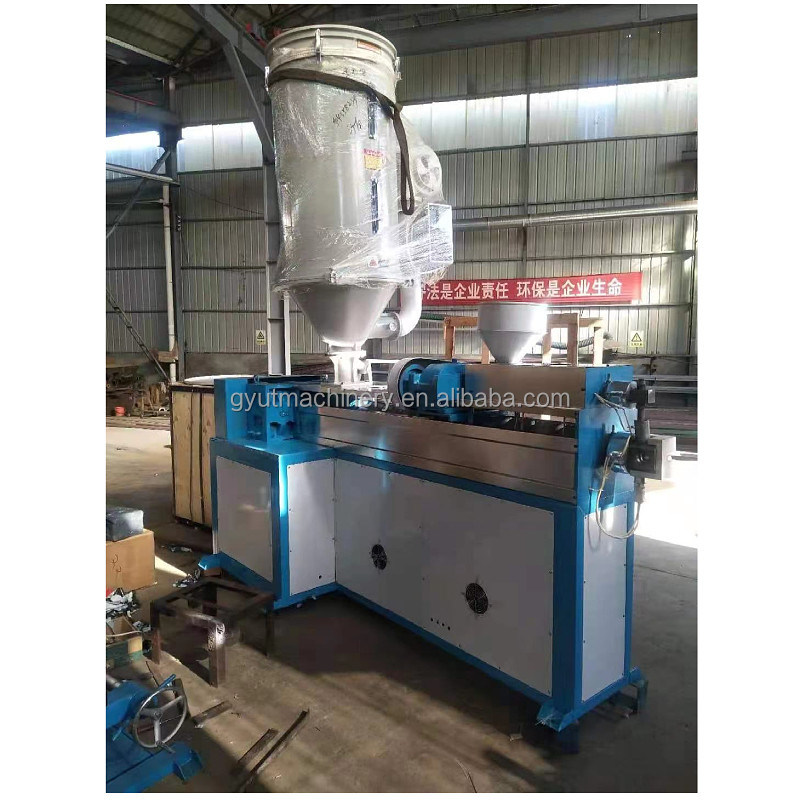

Drying machine and the automatic feeder

Capacity:100kg,

Attached to the hot air electric dryer , barrel temperature and heating time is set ,
electric heat and power plant 4KW

Automatic feeding machine

Straightening wheel

Type: Horizontal five-wheel straightening wheel

Tension straightening: manual adjustment

The five-wheel guide wheel can be positioned in two or three directions up and down, and the relative position can be adjusted.

Cooling tank

Supported with 3 U-shaped racks, with the height being adjustable American blow-off nozzle

The capstan

Double-wheel anodic oxidation surface strengthening

Upper and lower structures or left and right structures are adopted

Features:
1. The extruder can work with TPU, NYLON, LSHF etc. thermoplastic compound by using different design screw.
2. With multi-layer extruder, use different crosshead, for single layer, single layer + color stripping/ skinning, double layer,
triple layer etc. extrusion.
3. Automatic material feed and dryer system.

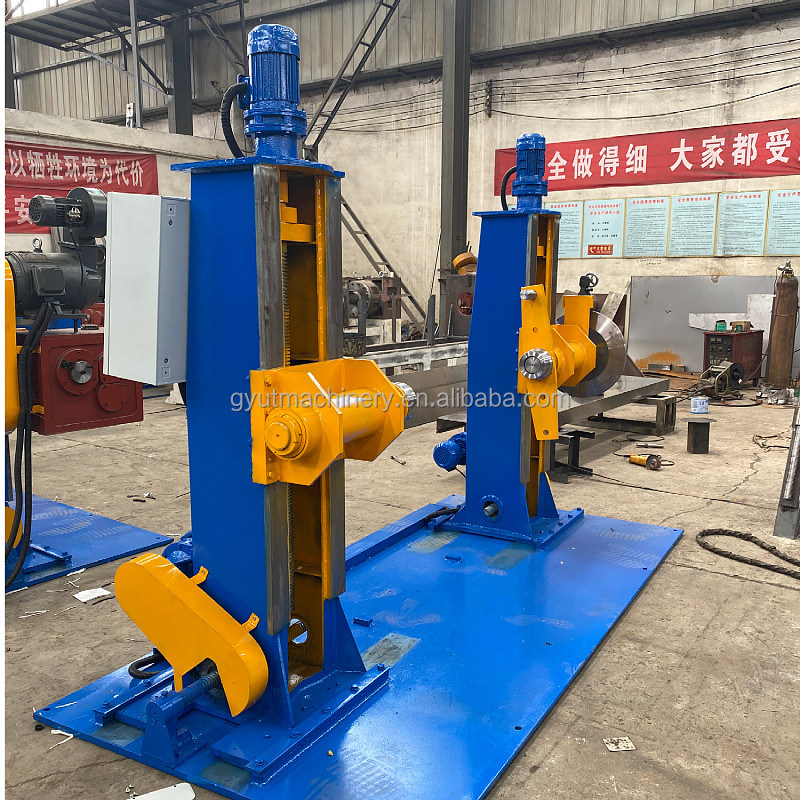

4. With dual payoff or fly payoff and accumulator, non-stop production during change take-up bobbin.

SALES AND SERVICE NETWORK

FAQ

For choosing proper machine, please read these bellow guides carefully:

1). What is the max and min size of the finish products. It is better offer the picture of sample or drawing of sample.
2). What capacity do you want? (kg/h)
3) Is there any special demand for electric parts? Siemens, Omron or domestic ?
4) What is your power standard(V, Hz)?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.

sale-service

Pre-sale:
1. Suggest to client suitable Bare wire diameter, final product capacity.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.

After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
