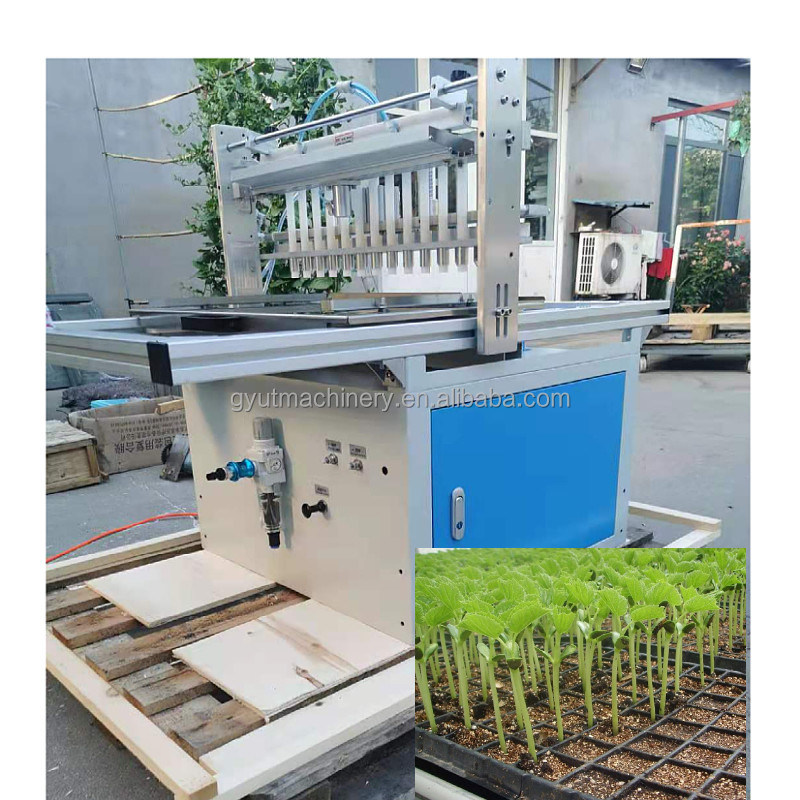

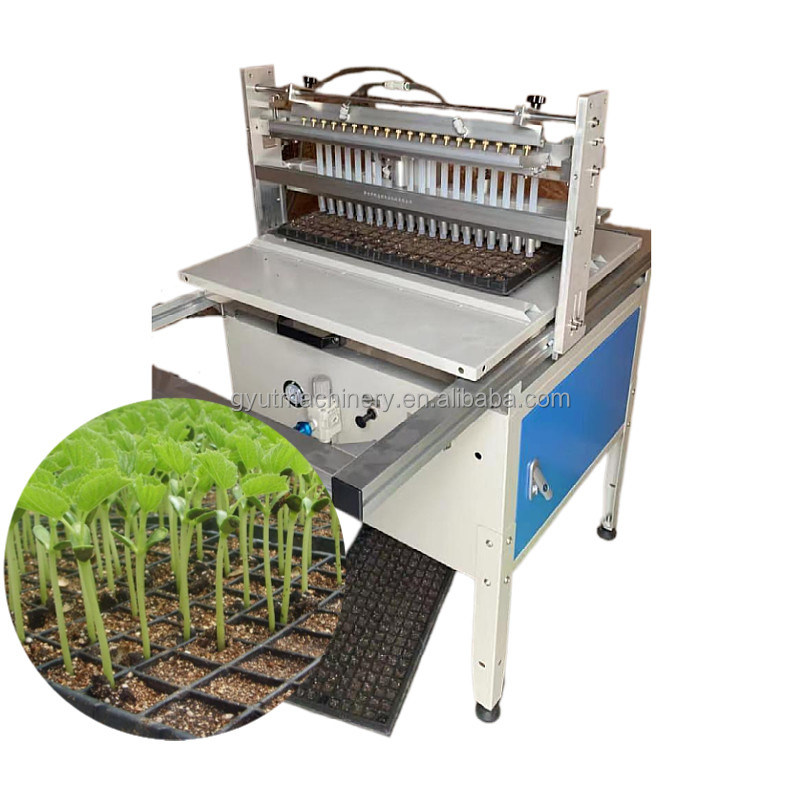

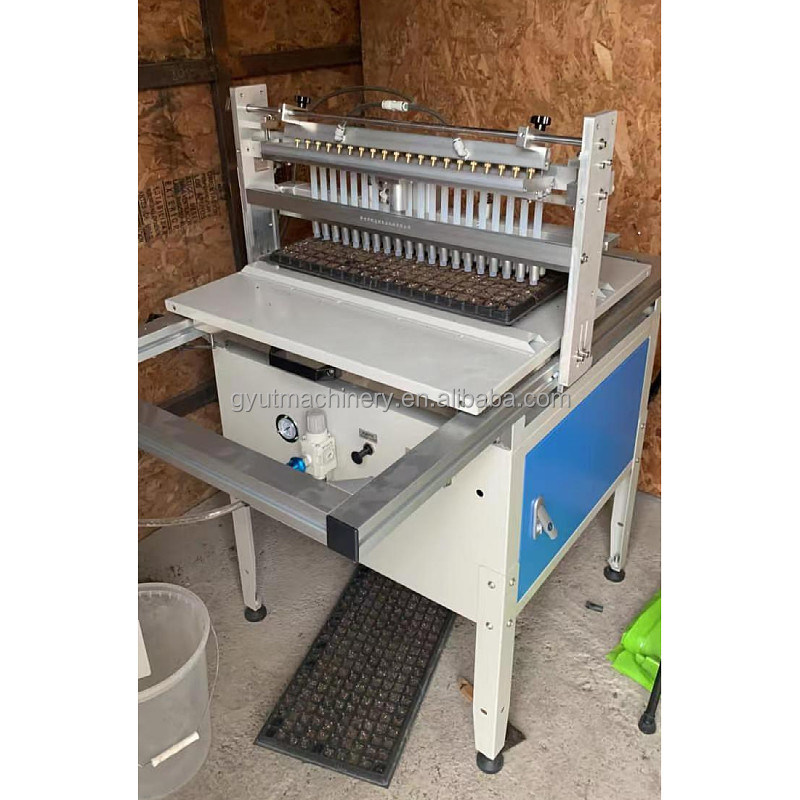

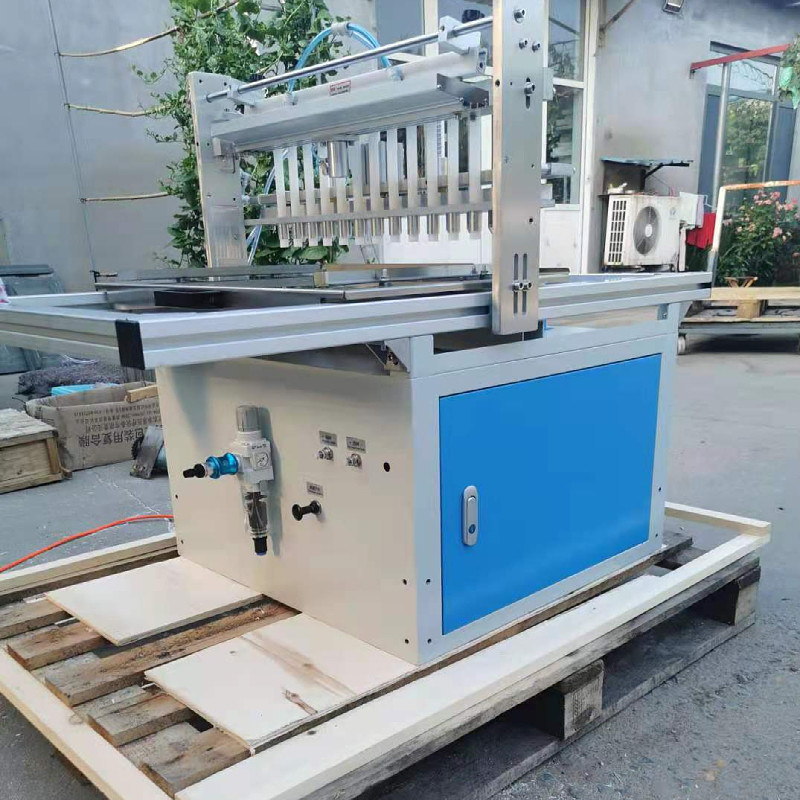

Greenhouse Vegetable Onion Tomato Seed Tray Seeder Nursery Planting Machine Seed Sowing Machine
Technical Parameters:
Vegetable seeder (production line) is with spreading soil, watering, seeding, fertilizing, soil covering and other functions .Widely used in vegetables, seeds seeding. The product adopts a air suction cylinder patented technology, actualizes the precision seeding of small seeds, is the best choice for vegetable, tobacco, flowers seedling.
| Dimensions(mm) | 1100x700x1200 |
| Precision | >95-98% |
| principle | air compressor |
| Weight | 95kg |
| Size for seed | 0.3-12mm |
| capacity | 300trays/hour |
Working theory:
Air aspiration type seeder is use the high speed fan to produce negative pressure, and pass on to the vacuum chamber of the seeding machine. When seeding tray returned, it will adsorb the seed and rotate with the seed tray. When the seed rool out the vacuum chamber, it will not bear negative pressure, and fall down to the tray by the self weight.
1) This machine is air-aspiration type seeder.
2) Adopts mechanical arm type swing equipment, operation is flexible and convenient.
3) One tray per seeding, high efficiency, the capacity is 220-240 per hour.
4) The seeding accuracy is more than 95%-98%.
5) Have the equipment of seed recovery after seeding.
Working theory:
Air aspiration type seeder is use the high speed fan to produce negative pressure, and pass on to the vacuum chamber of the seeding machine. When seeding tray returned, it will adsorb the seed and rotate with the seed tray. When the seed rool out the vacuum chamber, it will not bear negative pressure, and fall down to the tray by the self weight.
Specification:
1) This machine is air-aspiration type seeder.
2) Adopts mechanical arm type swing equipment, operation is flexible and convenient.
3) One tray per seeding, high efficiency, the capacity is 220-240 per hour.
4) The seeding accuracy is more than 95%-98%.
5) Have the equipment of seed recovery after seeding.
Features and Advantages of Nursery Seeding Machine
1. When seeding, one tray at a time, the seeding speed is 200 trays/hour. The seeding rate can reach 97%-98% or more. This machine greatly increases the precision of seeding and can realize one seed into one hole.
2. Efficient and convenient to use simple operation. The effect of raising seedlings is good, which ensures the increase of output and income and saves costs.
3. The machine can use a black tray(PVC) and a white tray(EPS). We can also provide trays of different sizes such as 14-200cells.
Shipping and packing:
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
