Name: COATING Automatic Armoring Machine for Customised 630 Steel Tape Cable Wire Aramid
Brand: Gongyi UT Machinery Trade Co., Ltd.
SKU: UT-500
Price: 14,650.00 USD
Availability: InStock

Home > Products > Ungrouped >

COATING Automatic Armoring Machine for Customised 630 Steel Tape Cable Wire Aramid

Place of Origin:

China

Brand Name:

Model Number:

UT-500

Request A Quote

COATING Automatic Armoring Machine for Customised 630 Steel Tape Cable Wire Aramid

Product Details

Use:

COATING

Name:

Cable Wire Armouring Machine

Color:

Customised

Application:

Cable Making Industry

Model:

630

Voltage:

380V 50Hz 3Phase/Customized

Material:

Steel Rape

Port:

QINGDAO PORT, SHANGHAI PORT, NINGBO PORT, TIANJIN PORT

Motor:

220v/380v/415v/customzied

Color:

Customzied

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

wooden box

Supply Ability

22 Set/Sets per Week

Corn Maize Grain Disk Mill Crushing Grinder for Dairy Products within 220v Voltage

Get Best Price

Advanced 500kg/day Hydroponic Fodder Machine for Livestock Forage Grass Barley Wheat

Get Best Price

Affordable Container Farming Grass Growing Machine Production Cycle 3-4 Days 22V Voltage

Get Best Price

Quick Cutt Baby Leaf Harvester 220V Green Micro Harvester with ≤1.5% Breakage Rate

Get Best Price

Contact Now

Product Description

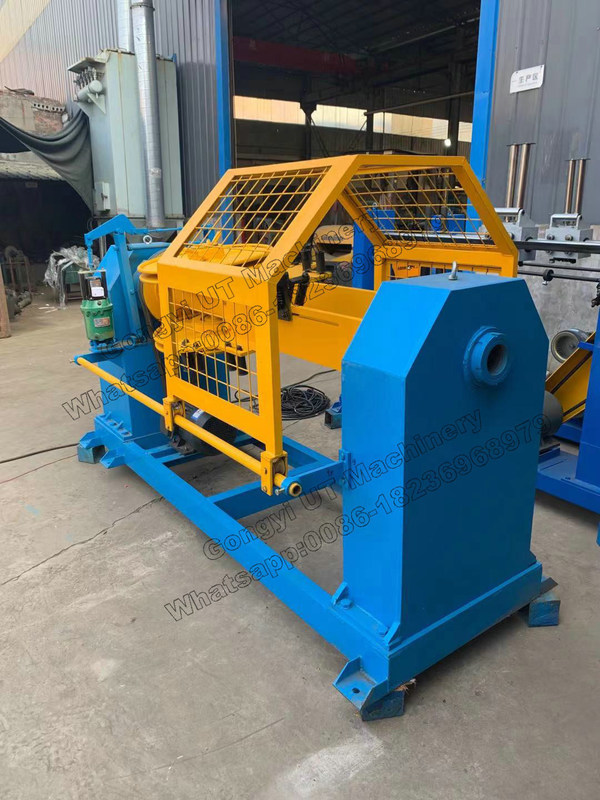

COATING Automatic Armoring Machine for Customised 630 Steel Tape Cable Wire Aramid 0

CAutomatic Cable Armoring Machine, 630 Steel Tape Cable Wire Aramid Armoring Machine

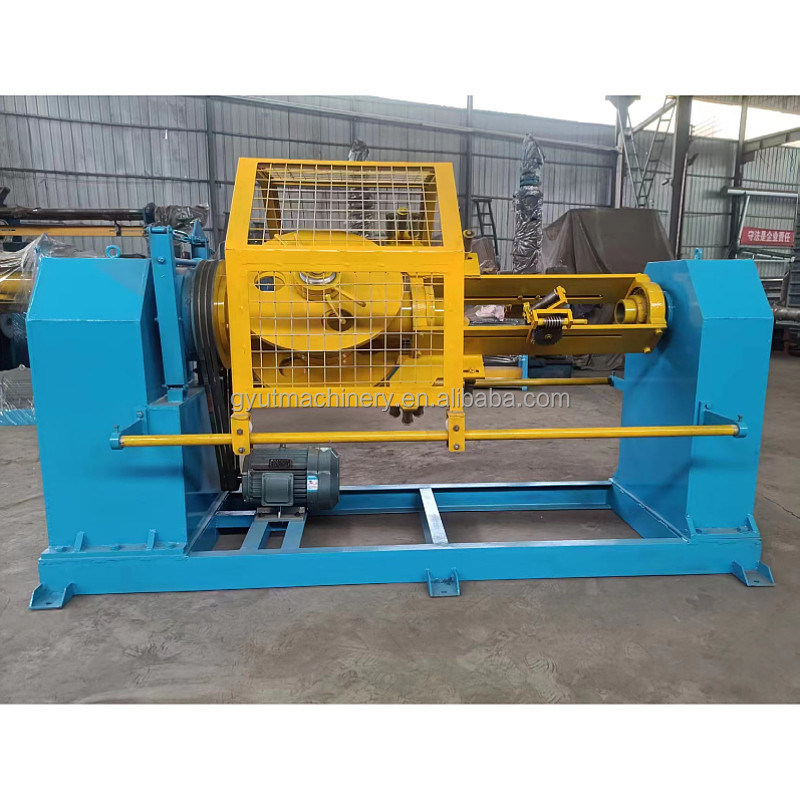

COATING Automatic Armoring Machine for Customised 630 Steel Tape Cable Wire Aramid 1

Product Description

Wire Cable Armouring Machine:

The steel tape armoring machine is used for armoring cables with steel tape.

Main Features:
1.The main shaft is made of a seamless steel tube, supported by double-row roller on both ends.
2.The back-twisting is completed by planetary gears which are bevel gears subject to heat treatment and have good resistance to abrasion and continuous motions.
3.The dog pin for the bobbin has spring inside, easy for loading and unloading the bobbin.

NO	Parameter	Unit	UT650 type	UT800 type
1	Cable core sectional area	mm²	2.5-16	10-120
2	Maximum cabling diameter	mm	40	50
3	The speed of the stranding cage	r/min	24.6-56.5(6stage)	11.1-25.1(6 stage)
4	Cabling pitch	mm	90-2889	90-2889
5	Traction speed	m/min	2.4-33.1(16 stage)	2.2-32.7(32 stage)
6	Pay-off bobbin specifications	mm	PN630	PN1000
7	Steel tapping head speed	m/min	191-781(9 stage)	108-444(9 stage)
8	Steel tapping head pitch	mm	3-173	5-302
9	Lapping head speed	r/min	139-568(9 stage)	81-323(9 stage)
10	Lapping head pitch	mm	4-238	6-403
11	Take-up bobbin specifications	mm	PN1600-PN3150	PN1600-PN3150

Device Center high 1000mm

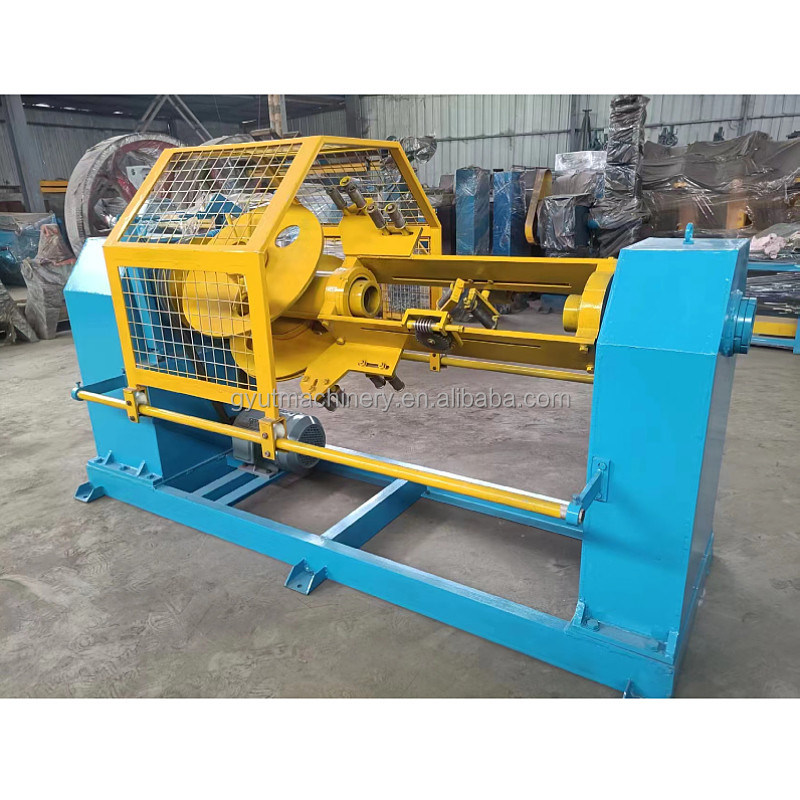

COATING Automatic Armoring Machine for Customised 630 Steel Tape Cable Wire Aramid 6

More Machine Pictures:

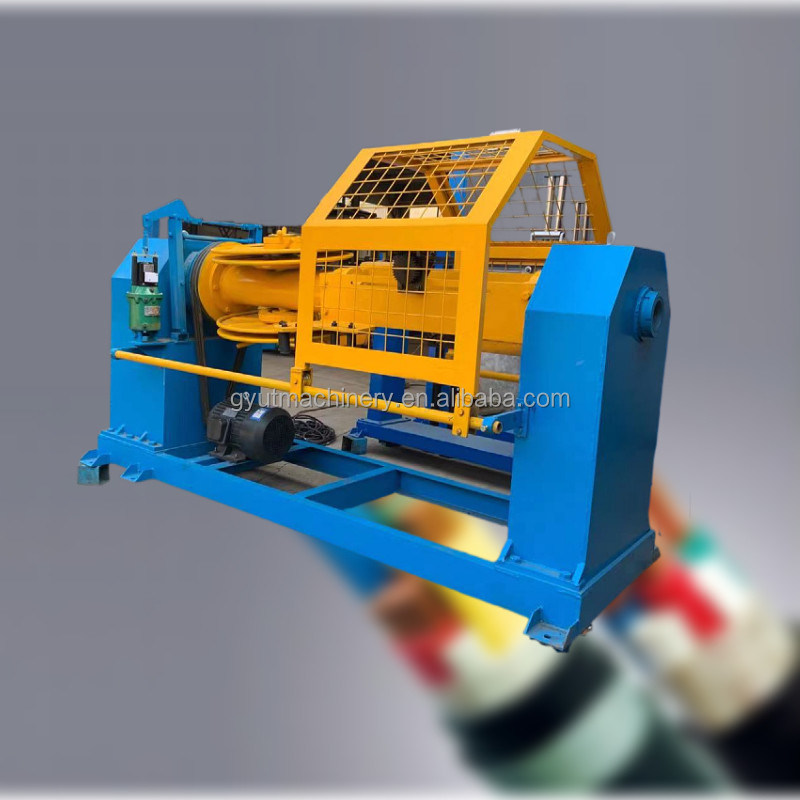

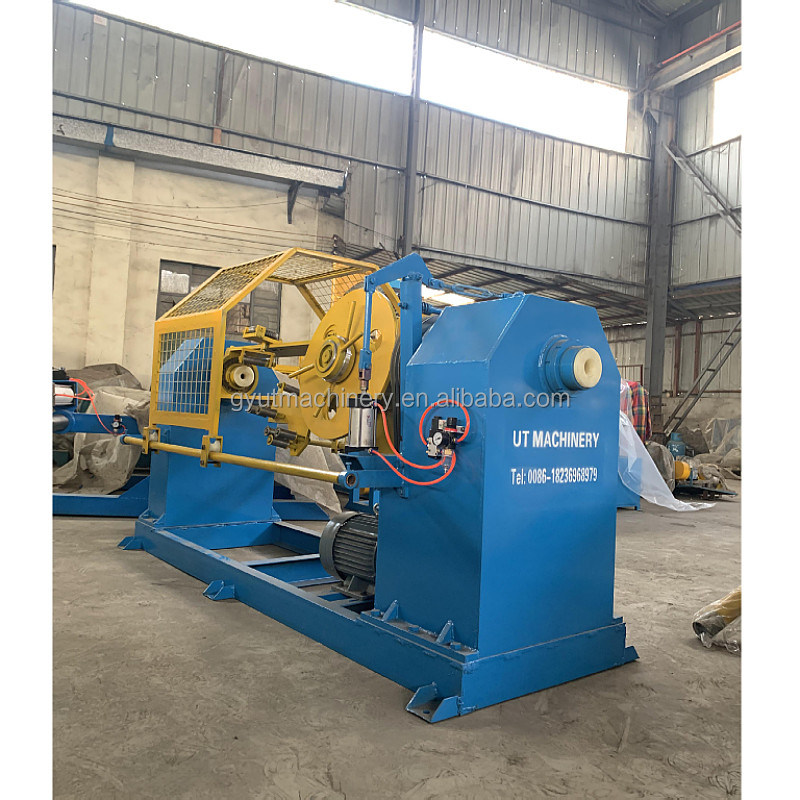

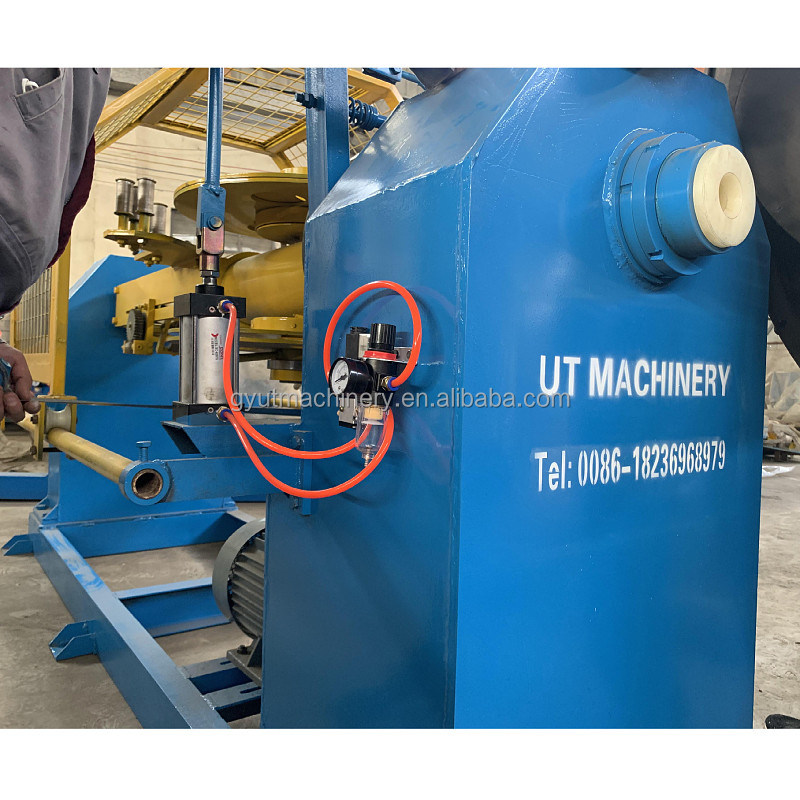

COATING Automatic Armoring Machine for Customised 630 Steel Tape Cable Wire Aramid 8

Packaging & Shipping

COATING Automatic Armoring Machine for Customised 630 Steel Tape Cable Wire Aramid 12

Our Services

Pre-sale:

1. Suggest to client suitable models according to the raw material, including its type, huimidity, final charcoal capacity requirements.

2. Introduce machine's structure and features in detail, explain the price component;

3. answer client concerned questions.

After-sale:

1. Start production as soon as receiving down payment.

2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.

3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.

4. Documents and certificate available in time.

5. Manual documents available. Engineer can be sent to client site for installation instruction.

COATING Automatic Armoring Machine for Customised 630 Steel Tape Cable Wire Aramid 13
