Customised 6 Row Planting G80 Automatic Seed Seeding Machine with Advanced Technology

Place of Origin:

China

Brand Name:

Request A Quote

Customised 6 Row Planting G80 Automatic Seed Seeding Machine with Advanced Technology

Product Details

Applicable Industries:

Manufacturing Plant, Farms

Number Of Rows:

4, 5, 6, 8, 9, 10, 12

Showroom Location:

Bangladesh

Condition:

New

Type:

Automatic

Application:

Tomato Seed, Chili Seed,

Use:

Tomato Seeding Machine

Weight:

200 KG

Dimension(L*W*H):

600*700*800mm

Warranty:

3 Years

Key Selling Points:

Automatic

Marketing Type:

New Product 2020

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

3 Years

Core Components:

PLC, Bearing, Engine

Name:

Automatic Seed Sowing Machines

Function:

Seeding Vegetable Seeds

Color:

Customised

Usage:

Seed Seeding Machine

Working Efficiency:

0.55-0.7ha./day

After Warranty Service:

Video Technical Support

Keyword:

Automatic Cabbage Seed Sowing Machines

Suitable For:

Automatic Cabbage Seed Sowing Machines

Local Service Location:

Spain

Motor:

220v/380v/415v/customzied

Color:

Customzied

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

wooden box

Corn Maize Grain Disk Mill Crushing Grinder for Dairy Products within 220v Voltage

Get Best Price

Advanced 500kg/day Hydroponic Fodder Machine for Livestock Forage Grass Barley Wheat

Get Best Price

Affordable Container Farming Grass Growing Machine Production Cycle 3-4 Days 22V Voltage

Get Best Price

Quick Cutt Baby Leaf Harvester 220V Green Micro Harvester with ≤1.5% Breakage Rate

Get Best Price

Contact Now

Product Description

Product Overview

Contact: orion.chai

mobile/ whatsapp:0086-18236968979

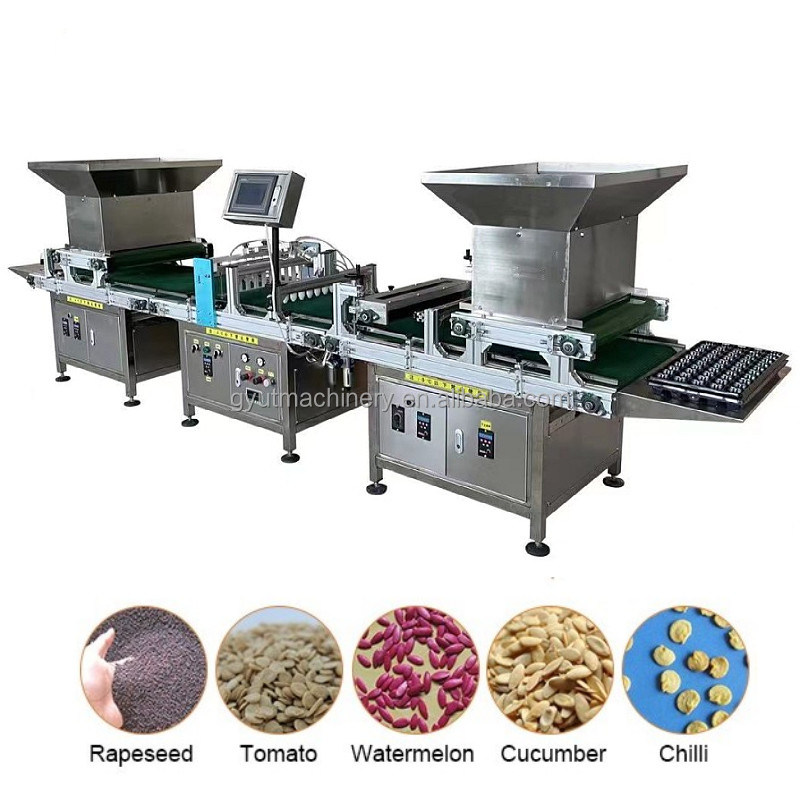

Vegetable seeder(production line) is with spreading soil, watering, seeding, fertilizing, soil covering and other

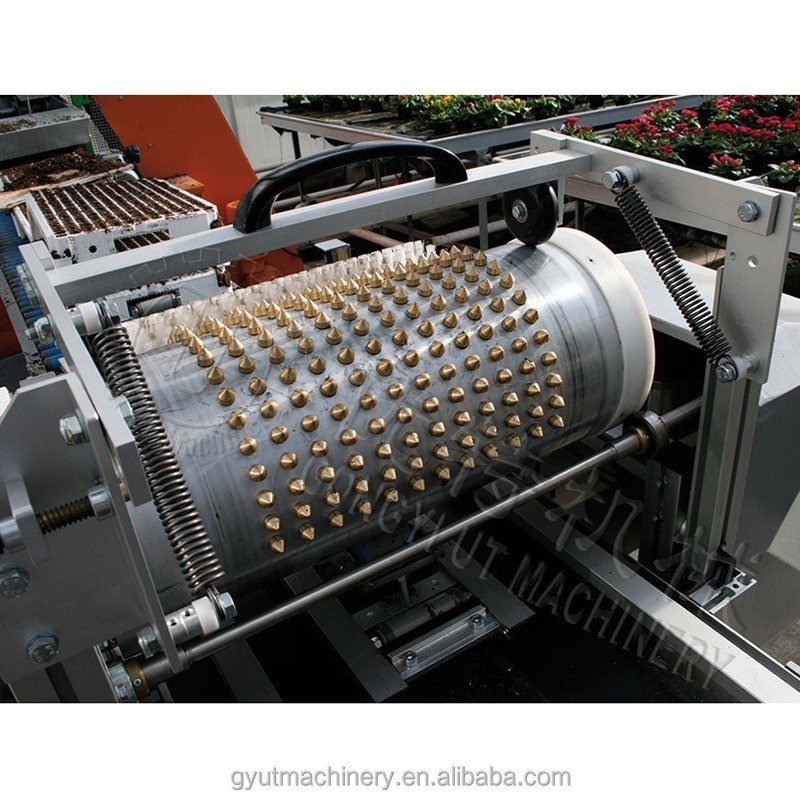

functions .Widely used in vegetables, seeds seeding. The product adopts a air suction cylinder patented technology, actualizes the precision seeding of small seeds, is the best choice for vegetable, tobacco, flowers seedling.

FEATURES AT A GLANCE

Dimensions(mm) ：1100x700x1200 Power,(kw/v)： 1.08/220 Application of plastic trays type ≤500mm (width) Total weight(kg) ：580 Efficiency(tray/h)： 750 Seeding device form：The suction drum type

Installation and commissioning and operation process

1. Install the suction plate, remove the baffle, remove the machine head, and install the seeding plate (the screws are all
screwed on) to ensure the installation is flat.
2. Connect the 220v power supply, turn the switch on, and hear the working sound of the fan.
3. Find the best matching needle based on the different seeds.
A, select several kinds of suction heads (needle), insert into the suction plate (8-10)
B, take a small amount of clean and impurity-free seeds (if the impurities are too much, the purity is not high, it is easy to
block the suction head),test whether it can be sucked, put a small amount of seeds into a small container, turn on the machine switch, the fan works, and test the best matching needle.
C, each sucker head is guaranteed to suck a seed. If it can't be sucked, the needle is small. If you suck a few, the needle is
big.
D, test the needle and find the best matching suction head (needle).
F. After finding the appropriate seed head, according to the number of needles on the suction plate, all the forks are sucked on the head (the baffle can be removed, the machine head is removed, and the baffle is installed after completion.

4. Put the appropriate amount of seeds in the seed tray (if the seeds are larger, or the amount is more, you can directly put the seeds in the seed tray to take seeds such as: soybeans, peas, corn, watermelon, etc.) Place the matching trays in the seed tray or place them in the precision suction hole. Seeds are placed in the plugs (or precision sucking holes) so that the seeds are concentrated when sucking and easy to suck.
5. Flowers and other smaller, lesser seeds, combined with precision suction and aspiration.
6. Put a rubber sleeve on each of the suction heads (use the needle to tie the eyes), expose the needle, and the rubber sleeve will prevent the needle from being clogged and the seeds running away when the substrate is inserted. It acts as a pressure point. After the pressure is completed, after the seed is taken in the seed tray, adjust the sowing depth screw so that the seed falls in the hole of the pressure hole, and do not insert the substrate to avoid clogging the needle.
7. Place the seed tray in place, rely on the baffle (the baffle is attached to the outside of the machine), and press the head to suck the seed.
8. Move the handpiece to the left and place the handle on the substrate-mounted tray. Press the handle.
9. Open the venting port, deflate, insert the seed into the matrix or drop into the hole of the pressed hole to complete the
seeding.
10. Repeat the above actions to complete the production.
11. Sprinkle the soil in the well-planted tray (after the pressure hole), if the seed is not inserted into the substrate, sprinkle
water.

SALES AND SERVICE NETWORK

FAQ

Q: If the seeds are not round shape, can they be used in your seeding machine?

A: No problem, any shape of seeds can be used in our UT seeding machine.

Q: Can this machine used to seed directly in the field?

A: No, it can't.Our seeding machine is used to seed to the seeding trays only.

Q: If we buy one set of UT seeding machine line, can we use all kinds of seeds?

A: If you change seed trays or seeds (much different from previous seeds), you should change seedling drum part to fit different trays and seeds.You'd better buy additional seedling drum, and it is easy to change.
