200 Tray Per Hour Black Tray Cabbage Seeding Planting Machines Automatic for Farms

Place of Origin:

China

Brand Name:

Request A Quote

200 Tray Per Hour Black Tray Cabbage Seeding Planting Machines Automatic for Farms

Product Details

Applicable Industries:

Manufacturing Plant, Farms

Number Of Rows:

4, 5, 6, 8, 9, 10, 12

Showroom Location:

Bangladesh

Condition:

New

Type:

Automatic

Application:

Tomato Seed, Chili Seed,

Use:

Tomato Seeding Machine

Weight:

200 KG

Dimension(L*W*H):

600*700*800mm

Warranty:

3 Years

Key Selling Points:

Automatic

Marketing Type:

New Product 2020

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

3 Years

Core Components:

PLC, Bearing, Engine

Seeds:

Cabbage Seed

Function:

Cabbage Seed Seeding Vegetable Seeds

Color:

Customised

Usage:

Seed Seeding Machine

Working Efficiency:

0.55-0.7ha./day

Name:

Cabbage Seed Planting Machine

Plant Distance:

22mm

Motor:

220v/380v/415v/customzied

Motor:

220v/380v/415v/customzied

Color:

Customzied

Color:

Customzied

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

wooden box

Corn Maize Grain Disk Mill Crushing Grinder for Dairy Products within 220v Voltage

Get Best Price

Advanced 500kg/day Hydroponic Fodder Machine for Livestock Forage Grass Barley Wheat

Get Best Price

Affordable Container Farming Grass Growing Machine Production Cycle 3-4 Days 22V Voltage

Get Best Price

Quick Cutt Baby Leaf Harvester 220V Green Micro Harvester with ≤1.5% Breakage Rate

Get Best Price

Contact Now

Product Description

Product Overview

Contact: orion.chai

mobile/ whatsapp:0086-18236968979

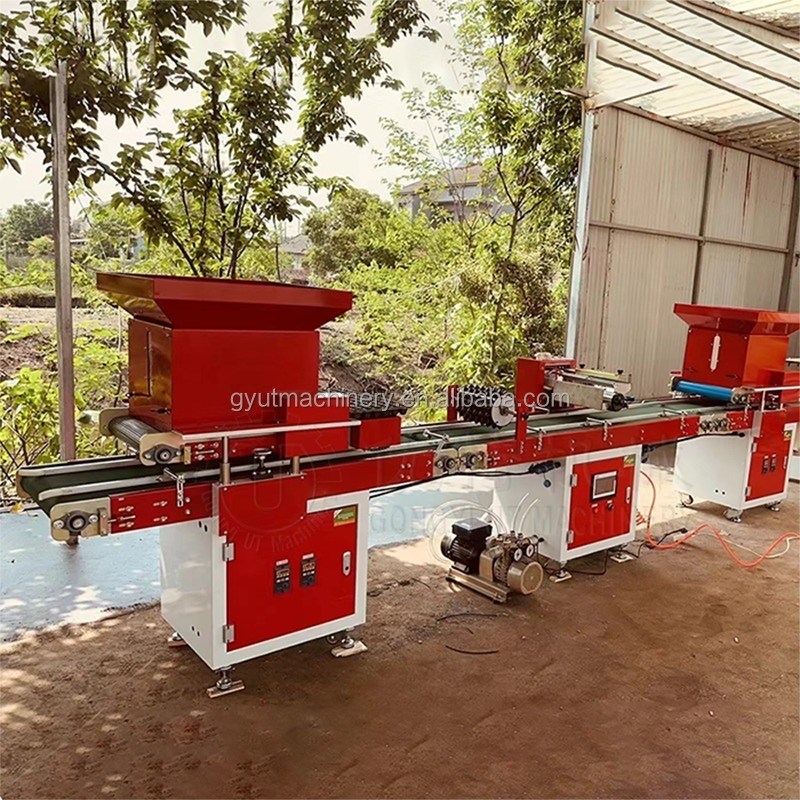

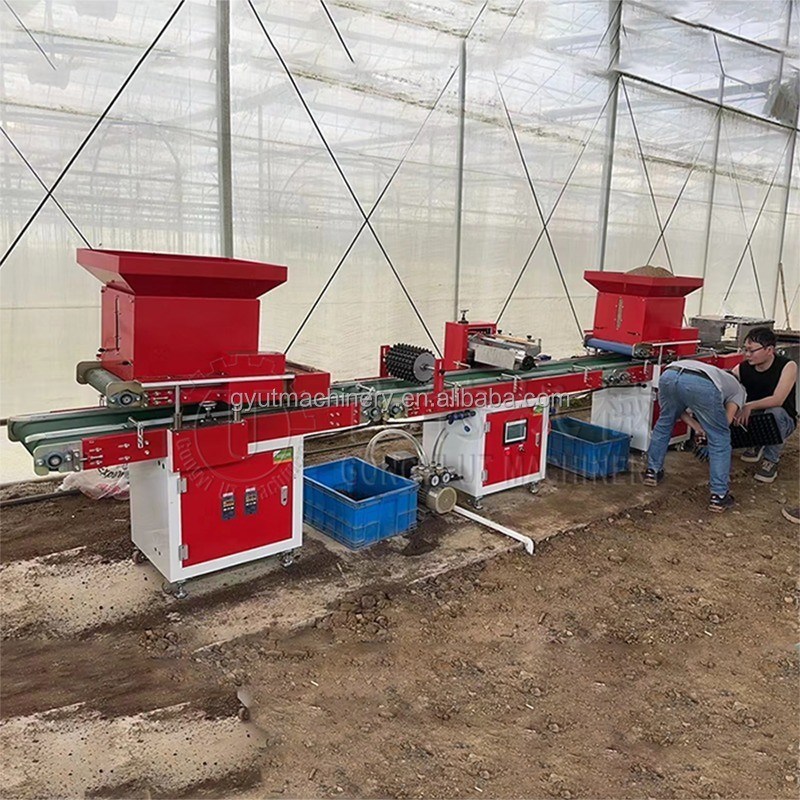

Vegetable seeder(production line) is with spreading soil, watering, seeding, fertilizing, soil covering and other
functions .Widely used in vegetables, seeds seeding.

The filler guarantees excellent coverage uniformity for all the cells, the ability to adjust the final density of the soil and has an additional hopper for the automatic recovery of excess peat. The heart of the machine is in the UT seeder: the outgoing containers pass under a marker drum that allows the creation of a central and homogeneous imprint in which the seed will be placed. The second phase is that of sowing with the seeds that are positioned in a single, precise and homogeneous manner via a dedicated drilled drum. Lastly, the covering and watering unit complete the seeding cycle, while the stacking unit, with the balance stacker, sorts the newly seeded containers in orderly stacks to make it easier to extract or palletise them.

FEATURES AT A GLANCE

Dimensions(mm) ：1100x700x1200 Power,(kw/v)： 1.08/220 Application of plastic trays type ≤500mm (width) Total weight(kg) ：580 Efficiency(tray/h)： 750 Seeding device form：The suction drum type

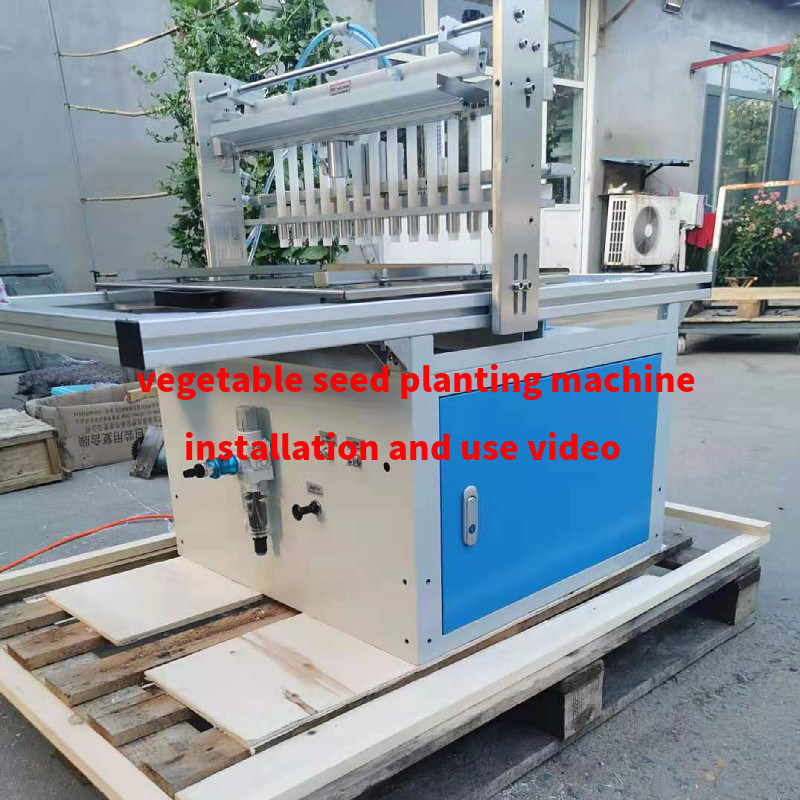

Installation and commissioning and operation process

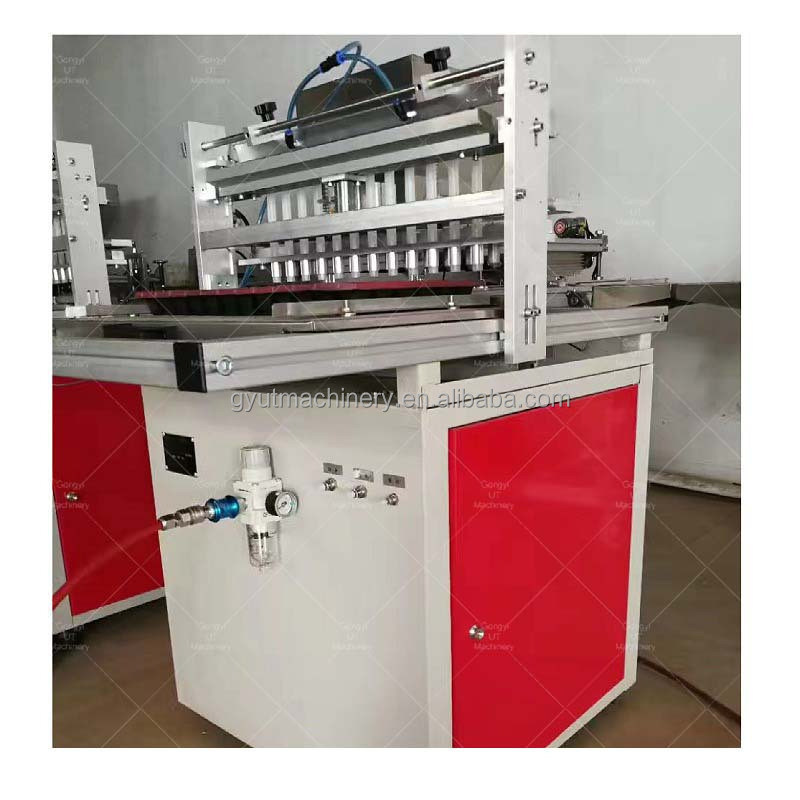

1. Install the suction plate, remove the baffle, remove the machine head, and install the seeding plate (the screws are all
screwed on) to ensure the installation is flat.
2. Connect the 220v power supply, turn the switch on, and hear the working sound of the fan.
3. Find the best matching needle based on the different seeds.

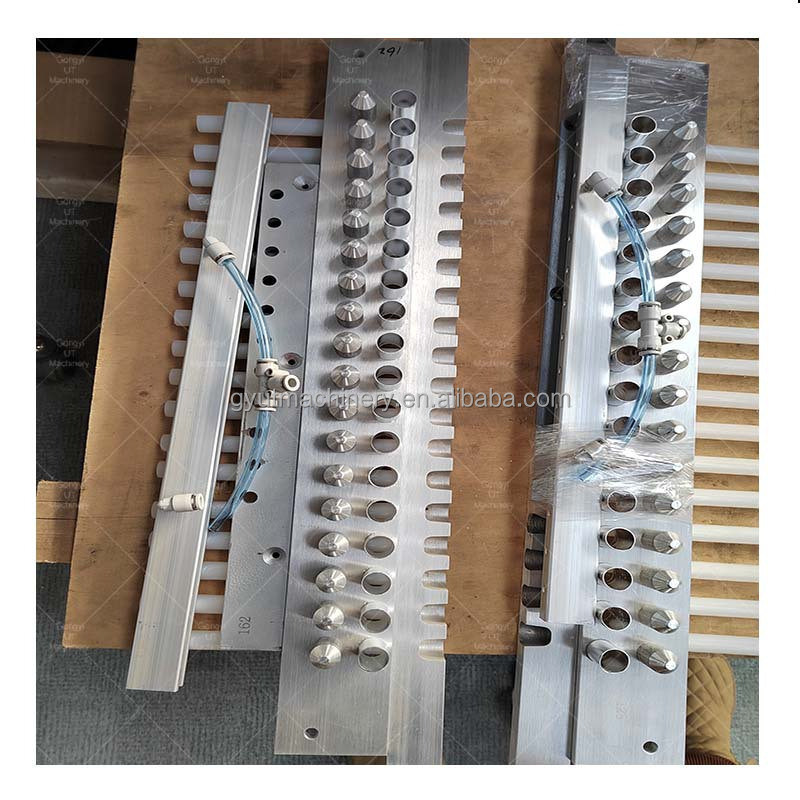

A, select several kinds of suction heads (needle), insert into the suction plate (8-10)
B, take a small amount of clean and impurity-free seeds (if the impurities are too much, the purity is not high, it is easy to
block the suction head),test whether it can be sucked, put a small amount of seeds into a small container, turn on the machine switch, the fan works, and test the best matching needle.
C, each sucker head is guaranteed to suck a seed. If it can't be sucked, the needle is small. If you suck a few, the needle is
big.
D, test the needle and find the best matching suction head (needle).
F. After finding the appropriate seed head, according to the number of needles on the suction plate, all the forks are sucked on the head (the baffle can be removed, the machine head is removed, and the baffle is installed after completion.

4. Put the appropriate amount of seeds in the seed tray (if the seeds are larger, or the amount is more, you can directly put the seeds in the seed tray to take seeds such as: soybeans, peas, corn, watermelon, etc.) Place the matching trays in the seed tray or place them in the precision suction hole. Seeds are placed in the plugs (or precision sucking holes) so that the seeds are concentrated when sucking and easy to suck.
5. Flowers and other smaller, lesser seeds, combined with precision suction and aspiration.

SALES AND SERVICE NETWORK

FAQ

Q: If the seeds are not round shape, can they be used in your seeding machine?

A: No problem, any shape of seeds can be used in our UT seeding machine.

Q: Can this machine used to seed directly in the field?

A: No, it can't.Our seeding machine is used to seed to the seeding trays only.

Q: If we buy one set of UT seeding machine line, can we use all kinds of seeds?

A: If you change seed trays or seeds (much different from previous seeds), you should change seedling drum part to fit different trays and seeds.You'd better buy additional seedling drum, and it is easy to change.
