15Kw Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet Production

Place of Origin:

China

Brand Name:

Request A Quote

15Kw Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet Production

Product Details

Features:

High Capacity And Labor Saving

Condition:

New

Machine Type:

Finger Joint Press

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Hot Product 2024

Warranty Of Core Components:

2 Years

Core Components:

PLC, Engine, Bearing, Motor, Pressure Vessel

Warranty:

2 Years

Weight (KG):

3500 KG

Key Selling Points:

Easy To Operate

Showroom Location:

Canada, France, Philippines, Brazil, Saudi Arabia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Romania, South Africa

Applicable Industries:

Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops

Power:

15Kw

Size:

Customized According To Need

Capacity:

1.5-2m3/24H- 2-2.5 M3/24H

Voltage:

380v

Weight:

1-1.4t

Density:

550-1000KG

Head:

Double Head

Model Name:

Wood Block Press Machine

Application:

Woodworking Process

Motor:

220v/380v/415v/customzied

Color:

Customzied

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

wooden box

Hydraulic Press Machine Moisturizing Bath Bomb Pressing Machine For Relaxation Treatment

Get Best Price

1200 KG Weight Hydraulic Press for UT Compressed Wood Sawdust Block Making Machine

Get Best Price

Full Automatic Multicolor Hole Hydraulic Bath Bomb Salt Ball Press Machine

Get Best Price

Hydraulic Press Bath Salt Ball Forming Machine For Multi Micro Elite Customized Bath Bombs

Get Best Price

Contact Now

Product Description

Hot product Hot Press Wooden Pallet Foot Making Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet for SaProduct Description

Product Description

It is used to turn the wood waste such as sawdust, wood wools into the pallet feet which is for the transportation pallet. The final product could get the E1 grade.
The pallet feet could be solid without hole in the center, also could be hollow. Besides, you could customise the mold for other shape wood waste compressed products.Block sizes could be customised from 75mm to 145mm. And the usual sizes are90*90mm, 90*100mm, 100*100mm,80*90mm.

15Kw Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet Production 0

15Kw Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet Production 2

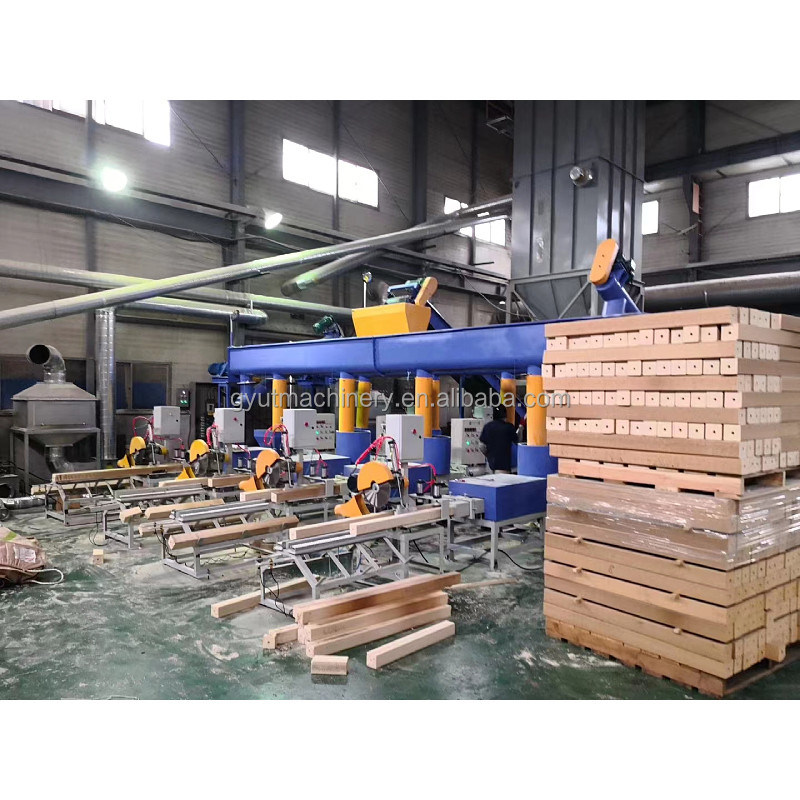

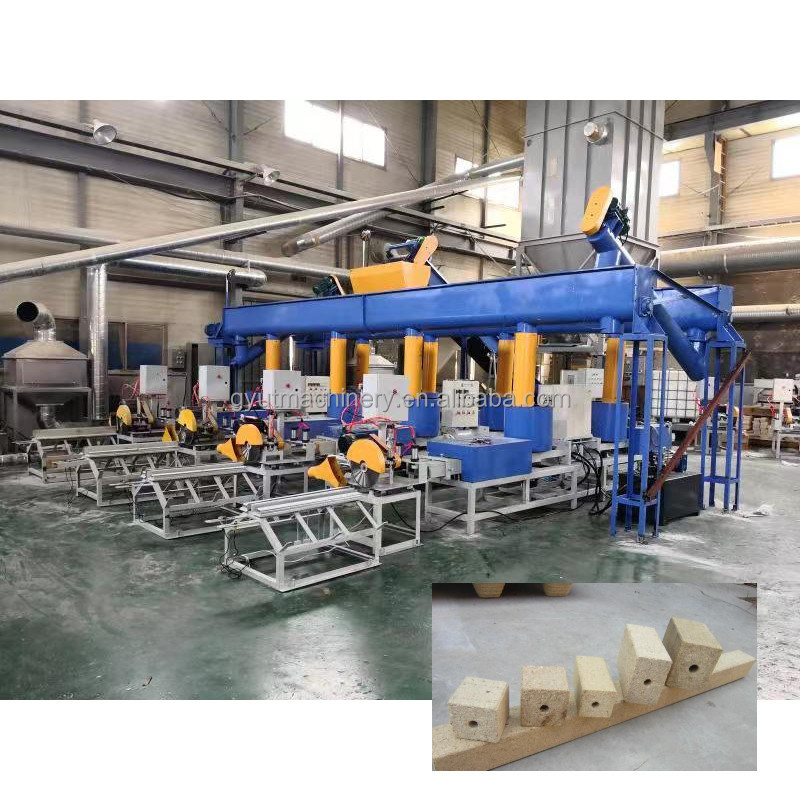

Work flow of Compressed Wood Blocks Making Machines:
a, Crushing the wood, branch, wood waste into sawdust, wood shavings or wood wools (or you have the raw material already);
b, Drying the raw material to 8% (solid block) or 10%(hollow block);
c, Mixing the raw material with glue;
d, Pressing them in the wood pallet block machine;
e, First cutting the product from pallet block machine into bar;
f, Second cutting the strip into the single blocks.

15Kw Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet Production 0

Wet sawdust after this dryer:

Personnel disposition: Production personnel are 45 people per shift. And raw material sort (screening), drying, spreads3 people, looked that machine 2 people (a person may look at two machines).

15Kw Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet Production 4

Glue mixer:

15Kw Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet Production 6

Model	Double head	Four head	Six head
Power	18kw	28kw	46kw
Capacity	2-3m3/24h	4-6m3/24h	6-8m3/24h
Glue	100-120kg/m3	100-120kg/m3	100-120kg/m3
Density	550-600kg/m3	550-600kg/m3	550-600kg/m3
Weight	1000kg	1500kg	2200kg
Dimension (mm)	48005001420	48007001800	49009401800

15Kw Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet Production 7

Packaging & Shipping

1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.

2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box.

Other Equipment will be packed by Color Stripes Plastic Cloth.

3. Or as per customer's requirements.

15Kw Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet Production 9

We also supply the Pallet Nailing Machine:

Pallet Nailing Machine mainly used to nail the wood bars and block feet together, worker just wood bars on the support frame, then it can nail it automatic, then it can lift the finished wood pallet to stack machine, stack machine can stack the wood pallet layer by layer, of course you can choose wood pallet nailing machine with stack, you can also buy the wood pallet nailing machine.

15Kw Automatic Wooden Block Pallet Feet Making Machine for Euro Pallet Production 11
